18-bit, 4-channel analog-to-digital converter (ADC) with a 1 MSPS conversion rate. Features include pseudo-bipolar input, onboard ADC driver OPA, and a 4-channel parallel interface. Offers 98.4dB SNR and 121dB SFDR. Operates from a 2.7V to 5.25V supply range, with a maximum power dissipation of 331.25mW. Packaged in a 64-VQFN with gold contact plating, suitable for -40°C to 85°C operation.
PackageVQFN
PolarityBipolar
Power331.25mW
Quick Jump:
Technical Specifications
Texas Instruments ADS8284IBRGCR technical specifications.
General
| Package/Case | VQFN |
| Contact Plating | Gold |
| Conversion Rate | 1000KS/s |
| Integral Nonlinearity (INL) | 2.5LSB |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 331.25mW |
| Max Supply Voltage (DC) | 5.25V |
| Min Supply Voltage (DC) | 2.7V |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 4 |
| Number of Bits | 18 |
| Number of Channels | 4 |
| Number of Converters | 1 |
| Number of Inputs | 4 |
| Operating Supply Voltage | 5V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Bipolar |
| Power Dissipation | 331.25mW |
| Resolution | 18b |
| RoHS Compliant | Yes |
| Sampling Rate | 1000000S/s |
| Signal to Noise Ratio (SNR) | 98.4dB |
| Spurious-free dynamic range (SFDR) | 121dB |
| Supply Type | Dual, Analog, Digital, Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS8284IBRGCR Datasheet
Download the complete datasheet for Texas Instruments ADS8284IBRGCR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

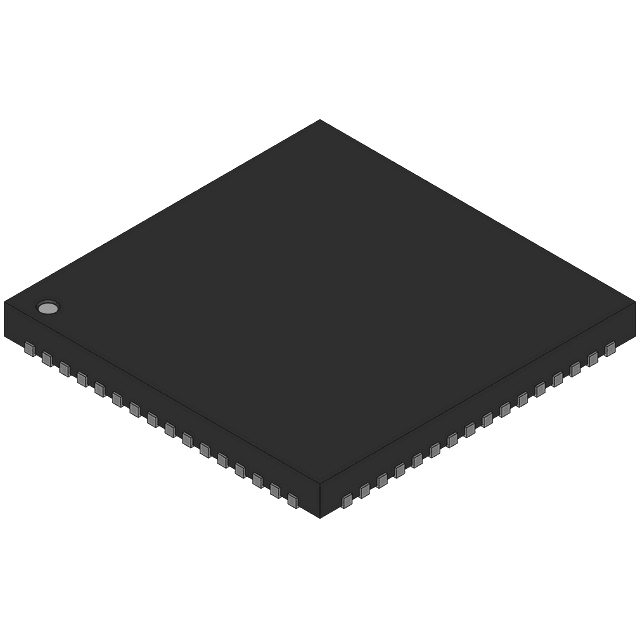

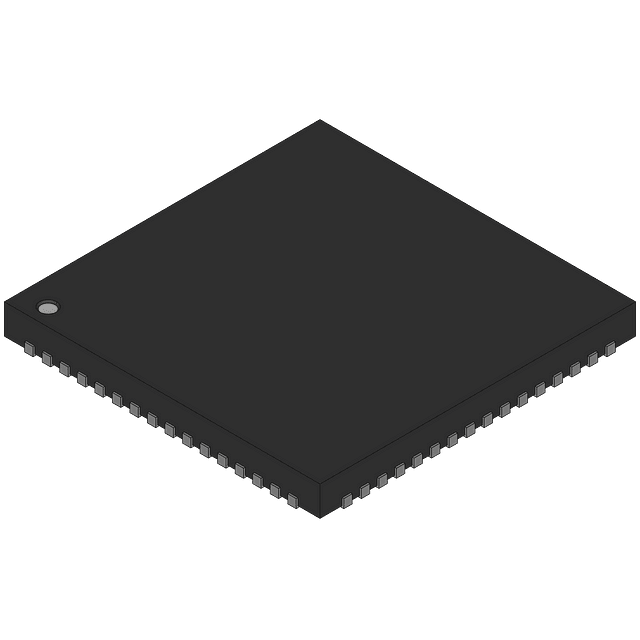

Product Images
