8-bit Analog-to-Digital Converter (ADC) with a 60 MSPS sampling rate. Features 1 LSB differential nonlinearity and 1.5 LSB integral nonlinearity. Operates with a 3V to 5V supply voltage range and a single supply type. Offers a parallel interface and a bipolar polarity. Packaged in a 20-SSOP with gold contact plating, suitable for -40°C to 85°C operation.
PackageSSOP
PolarityBipolar
Power215mW
Quick Jump:
Technical Specifications
Texas Instruments ADS830E/2K5 technical specifications.
General
| Package/Case | SSOP |
| Contact Plating | Gold |
| Conversion Rate | 60000KS/s |
| Differential Nonlinearity | 1LSB |
| Integral Nonlinearity (INL) | 1.5LSB |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 225mW |
| Max Supply Voltage (DC) | 5V |
| Min Supply Voltage (DC) | 3V |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Nominal Supply Current | 37mA |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 8 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Polarity | Bipolar |
| Power Consumption | 215mW |
| Power Dissipation | 215mW |
| Resolution | 8b |
| RoHS Compliant | Yes |
| Sampling Rate | 60MS/s |
| Signal to Noise Ratio (SNR) | 49.5dB |
| Spurious-free dynamic range (SFDR) | 67dB |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS830E/2K5 Datasheet
Download the complete datasheet for Texas Instruments ADS830E/2K5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

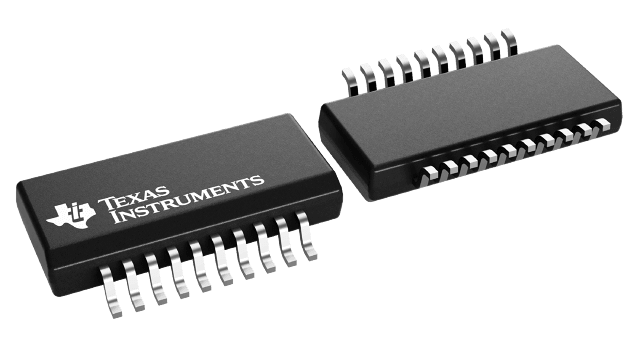

Product Images
