16-bit, 1-channel Analog-to-Digital Converter (ADC) with a 100 kSPS conversion rate. Features SPI serial interface, 91dB Signal-to-Noise Ratio (SNR), and 108dB Spurious-Free Dynamic Range (SFDR). Operates from a single 2.7V to 5.5V supply, with a typical power consumption of 2.25mW. Packaged in a VSSOP (MSOP) with gold contact plating, suitable for Tape and Reel SMD/SMT termination.
PackageMSOP
Current900uA
PolarityUnipolar
Power2.25mW
Quick Jump:
Technical Specifications
Texas Instruments ADS8325IBDGKT technical specifications.
General
Package/Case
MSOP
Contact Plating
Gold
Conversion Rate
100KS/s
Differential Nonlinearity
2LSB
Full Scale Error
12LSB
Height
0.97mm
Integral Nonlinearity (INL)
4LSB
Interface
SPI, Serial
Lead Free
Lead Free
Length
3mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
7.5mW
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
2.7V
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
16
Number of Channels
1
Number of Converters
1
Number of Elements
1
Number of Inputs
1
Operating Supply Voltage
5V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Unipolar
Power Consumption
2.25mW
Power Dissipation
4.5mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
100KS/s
Series
microPOWER™
Signal to Noise Ratio (SNR)
91dB
Spurious-free dynamic range (SFDR)
108dB
Supply Current
900uA
Supply Type
Single
Termination
SMD/SMT
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ADS8325IBDGKT Datasheet
Download the complete datasheet for Texas Instruments ADS8325IBDGKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

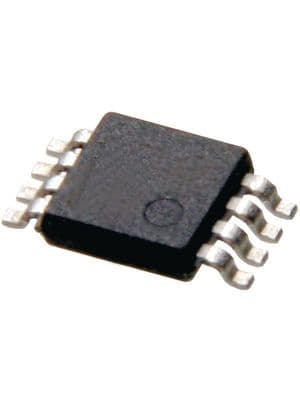

Product Images
