Texas Instruments
ADS8327IRSAT
2.7V-to-5.5V 16-Bit 500kSPS Serial Analog-to-Digital Converter (ADC) 16-QFN -40 to 85
PackageVQFN
MountingSurface Mount
Power15mW
Quick Jump:
Technical Specifications
Texas Instruments ADS8327IRSAT technical specifications.
General
| Package/Case | VQFN |
| Conversion Rate | 500KS/s |
| Interface | SPI |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 15mW |
| Mount | Surface Mount |
| Nominal Supply Current | 5mA |
| Number of Bits | 16 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Consumption | 15mW |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Sampling Rate | 500000S/s |
| Signal to Noise Ratio (SNR) | 91dB |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS8327IRSAT Datasheet
Download the complete datasheet for Texas Instruments ADS8327IRSAT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

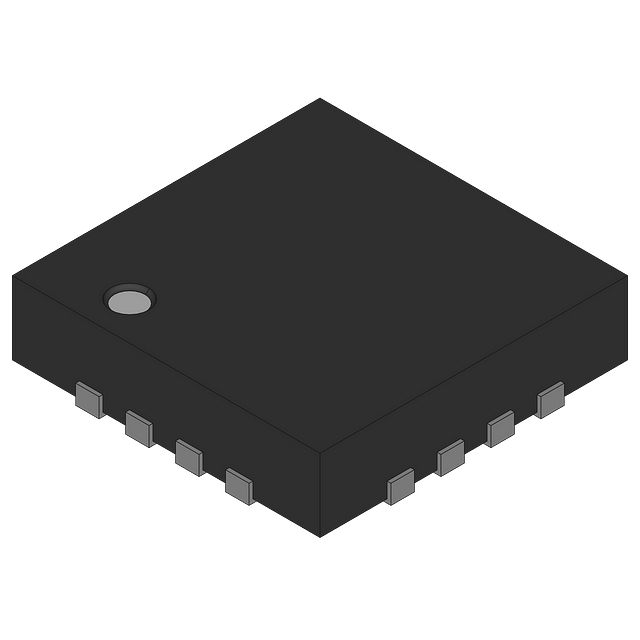

Product Images
