16-bit, 4-channel serial output sampling Analog-to-Digital Converter (ADC) with a conversion rate of 100 kS/s. Features a 16-SSOP package with gold contact plating, operating from a 2.7V to 5.25V single supply. Achieves 92dB spurious-free dynamic range (SFDR) and offers integral nonlinearity (INL) of 6LSB and differential nonlinearity (DNL) of 2LSB. This RoHS compliant component operates within a temperature range of -40°C to 85°C.
PackageSSOP
PolarityUnipolar
Power3.6mW
Quick Jump:
Technical Specifications
Texas Instruments ADS8341EB/2K5 technical specifications.
General
| Package/Case | SSOP |
| Contact Plating | Gold |
| Conversion Rate | 100KS/s |
| Differential Nonlinearity | 2LSB |
| Integral Nonlinearity (INL) | 6LSB |
| Interface | Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 10mW |
| Max Supply Voltage (DC) | 5.25V |
| Min Supply Voltage (DC) | 2.7V |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 2.7V |
| Nominal Supply Current | 1.5mA |
| Number of A/D Converters | 1 |
| Number of Bits | 16 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 4 |
| Operating Supply Voltage | 5V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Polarity | Unipolar |
| Power Consumption | 3.6mW |
| Power Dissipation | 7.5mW |
| Radiation Hardening | No |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Sampling Rate | 100KS/s |
| Spurious-free dynamic range (SFDR) | 92dB |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS8341EB/2K5 Datasheet
Download the complete datasheet for Texas Instruments ADS8341EB/2K5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

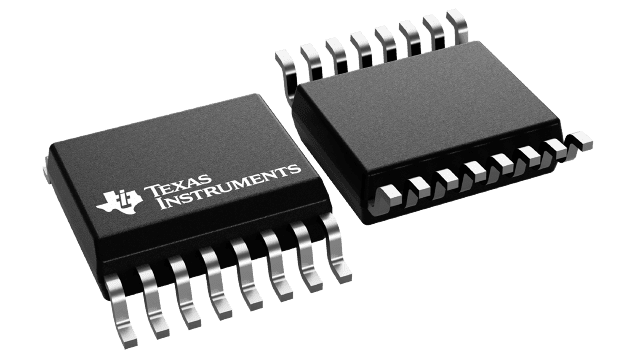

Product Images
