16-bit, 4-channel analog-to-digital converter (ADC) with a serial interface. Features a 100 kS/s conversion rate, 16-bit resolution, and bipolar polarity. Offers a wide operating temperature range of -40°C to 85°C and a single supply voltage from 2.7V to 5.25V. Integral nonlinearity is 8 LSB, and differential nonlinearity is 2 LSB, with a spurious-free dynamic range of 97 dB. Packaged in a 16-SSOP with gold contact plating, this lead-free, RoHS-compliant component is supplied on tape and reel.
PackageSSOP
PolarityBipolar
Power3.6mW
Quick Jump:
Technical Specifications
Texas Instruments ADS8343E/2K5 technical specifications.
General
| Package/Case | SSOP |
| Contact Plating | Gold |
| Conversion Rate | 100KS/s |
| Differential Nonlinearity | 2LSB |
| Integral Nonlinearity (INL) | 8LSB |
| Interface | Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 10mW |
| Max Supply Voltage (DC) | 5.25V |
| Min Supply Voltage (DC) | 2.7V |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 2.7V |
| Nominal Supply Current | 1.5mA |
| Number of A/D Converters | 1 |
| Number of Bits | 16 |
| Number of Converters | 1 |
| Number of Inputs | 4 |
| Operating Supply Voltage | 5V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Polarity | Bipolar |
| Power Consumption | 3.6mW |
| Power Dissipation | 7.5mW |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Sampling Rate | 100000S/s |
| Spurious-free dynamic range (SFDR) | 97dB |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS8343E/2K5 Datasheet
Download the complete datasheet for Texas Instruments ADS8343E/2K5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

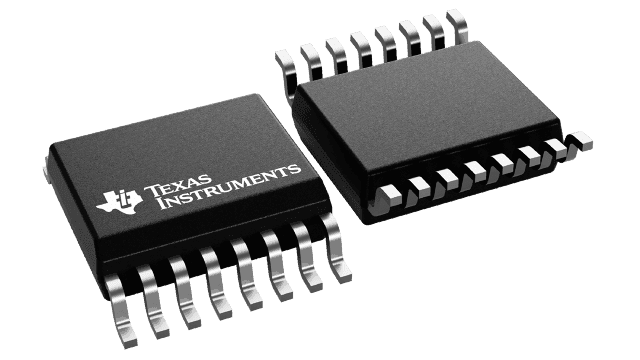

Product Images
