18-bit, 600 kSPS serial Analog-to-Digital Converter (ADC) featuring a fully differential input and a pseudo-bipolar output. Achieves 96dB Signal-to-Noise Ratio (SNR) and 120dB Spurious-Free Dynamic Range (SFDR) with an Integral Nonlinearity (INL) of 5 LSB. Operates from a 2.7V to 5.25V supply range, consuming a maximum of 115mW. Interface is SPI compatible, and the component is housed in a 28-VQFN package, suitable for operation between -40°C and 85°C.
PackageVQFN
PolarityBipolar
Power115mW
Quick Jump:
Technical Specifications
Texas Instruments ADS8382IRHPT technical specifications.
General
| Package/Case | VQFN |
| Conversion Rate | 600KS/s |
| Integral Nonlinearity (INL) | 5LSB |
| Interface | SPI |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 115mW |
| Max Supply Voltage (DC) | 5.25V |
| Min Supply Voltage (DC) | 2.7V |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Nominal Supply Current | 22mA |
| Number of Bits | 18 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Bipolar |
| Power Consumption | 115mW |
| Resolution | 18b |
| RoHS Compliant | Yes |
| Sampling Rate | 600000S/s |
| Signal to Noise Ratio (SNR) | 96dB |
| Spurious-free dynamic range (SFDR) | 120dB |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS8382IRHPT Datasheet
Download the complete datasheet for Texas Instruments ADS8382IRHPT to view detailed technical specifications.
No datasheet is available for this part.

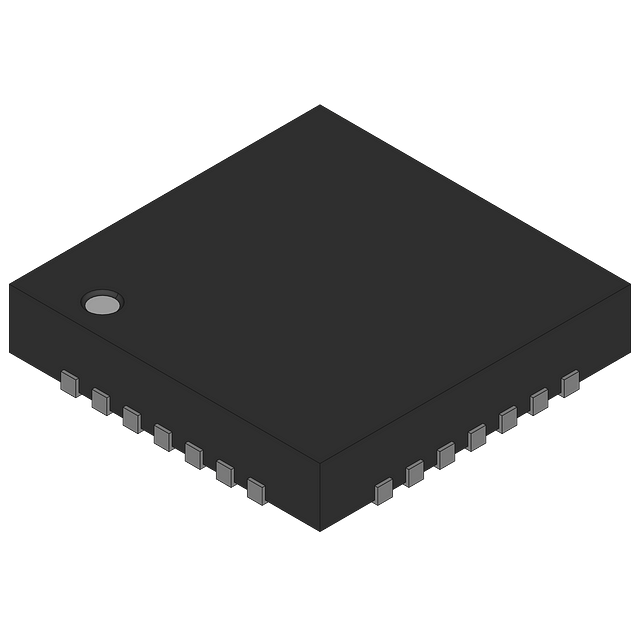

Product Images
