18-bit, 1.25MS/s parallel Analog-to-Digital Converter (ADC) featuring a fully differential input and pseudo-bipolar operation. Offers 99dB Signal-to-Noise Ratio (SNR) and 4 LSB Integral Nonlinearity (INL). Operates from a 4.75V to 5.25V supply, with typical power consumption of 155mW. Packaged in a 48-VQFN with gold contact plating, suitable for surface mounting and operating across a -40°C to 85°C temperature range.
PackageVQFN
MountingSurface Mount
PolarityBipolar
Power155mW
Quick Jump:
Technical Specifications
Texas Instruments ADS8484IRGZR technical specifications.
General
| Package/Case | VQFN |
| Contact Plating | Gold |
| Conversion Rate | 1.25MS/s |
| Integral Nonlinearity (INL) | 4LSB |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 260mW |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 18 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Polarity | Bipolar |
| Power Consumption | 155mW |
| Power Dissipation | 235mW |
| Resolution | 18b |
| RoHS Compliant | Yes |
| Sampling Rate | 1.25MS/s |
| Signal to Noise Ratio (SNR) | 99dB |
| Supply Type | Analog, Digital, Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS8484IRGZR Datasheet
Download the complete datasheet for Texas Instruments ADS8484IRGZR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

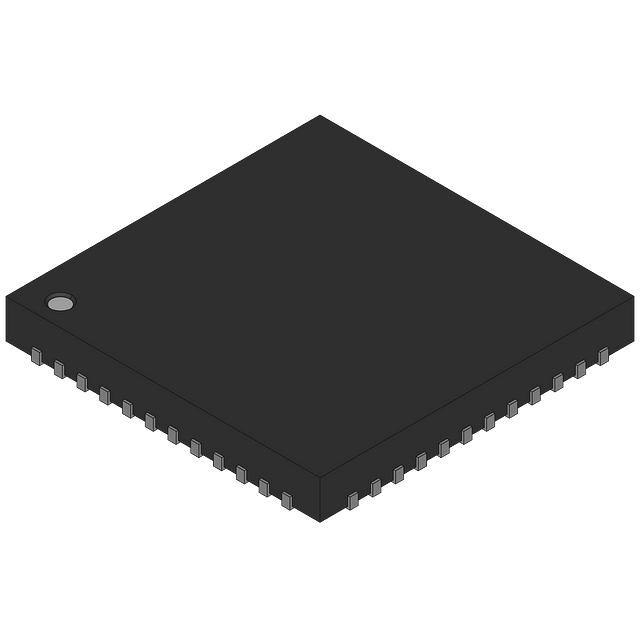

Product Images
