16-bit, 250 kSPS, 1-channel SAR Analog-to-Digital Converter (ADC) featuring programmable input ranges of ±10V, ±5V, or ±3.3V. This bipolar ADC offers a parallel interface and a signal-to-noise ratio (SNR) of 88dB with a spurious-free dynamic range (SFDR) of 98dB. Integral nonlinearity (INL) is rated at 4 LSB, and differential nonlinearity (DNL) is 2 LSB. Operating from a 4.75V to 5.25V supply, it is housed in a 28-SOIC package with gold contact plating and operates across a temperature range of -40°C to 85°C.
PackageSOIC
PolarityBipolar
Power155mW
Quick Jump:
Technical Specifications
Texas Instruments ADS8505IDWR technical specifications.
General
| Package/Case | SOIC |
| Contact Plating | Gold |
| Conversion Rate | 250KS/s |
| Differential Nonlinearity | 2LSB |
| Input Type | SINGLE-ENDED |
| Integral Nonlinearity (INL) | 4LSB |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 100mW |
| Max Supply Voltage (DC) | 5.25V |
| Min Supply Voltage (DC) | 4.75V |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Nominal Supply Current | 12mA |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 16 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Polarity | Bipolar |
| Power Consumption | 155mW |
| Power Dissipation | 70mW |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Sampling Rate | 250000S/s |
| Signal to Noise Ratio (SNR) | 88dB |
| Spurious-free dynamic range (SFDR) | 98dB |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ADS8505IDWR Datasheet
Download the complete datasheet for Texas Instruments ADS8505IDWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

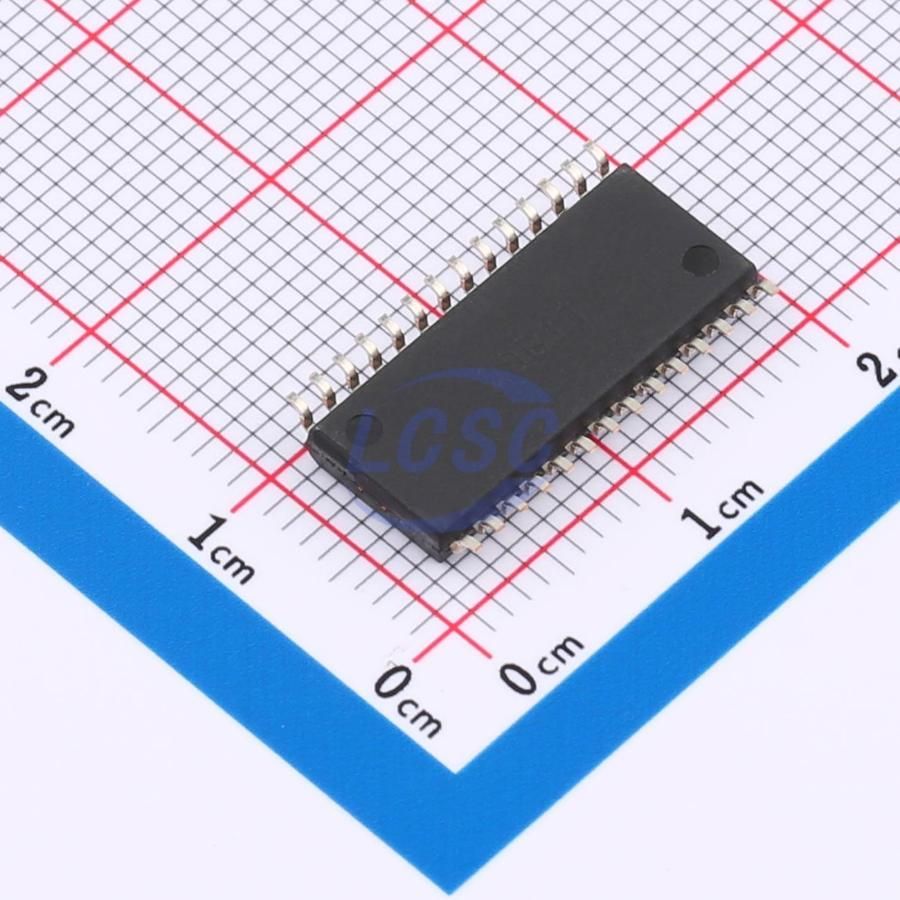

Product Images
