16-bit SAR Analog-to-Digital Converter (ADC) with a 200 kSPS conversion rate. Features a single-ended bipolar input and SPI/Parallel interface. Offers 16-bit resolution with an Integral Nonlinearity (INL) of 3 LSB and a Signal-to-Noise Ratio (SNR) of 89 dB. Operates from a 4.5V to 5.5V supply voltage, with a typical operating voltage of 5V. Packaged in a 28-SOIC surface-mount case, suitable for operation between -40°C and 85°C.
PackageSOIC
Current9mA
MountingSurface Mount
PolarityBipolar, Unipolar
Quick Jump:
Technical Specifications
Texas Instruments ADS8517IDW technical specifications.
General
Package/Case
SOIC
Conversion Rate
200KS/s
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
3LSB
Interface
SPI, Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
60mW
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Bits
16
Number of Channels
1
Number of Converters
1
Number of Elements
1
Number of Inputs
1
Operating Supply Voltage
5V
Package Quantity
20
Packaging
Rail/Tube
Polarity
Bipolar, Unipolar
Power Consumption
155mW
Power Dissipation
60mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
200KS/s
Signal to Noise Ratio (SNR)
89dB
Supply Current
9mA
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ADS8517IDW Datasheet
Download the complete datasheet for Texas Instruments ADS8517IDW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

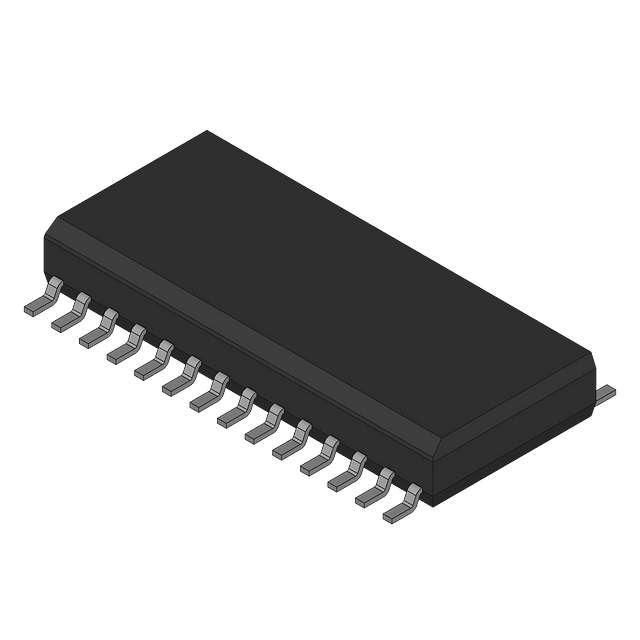

Product Images
