Quad RS-422 bus transceiver featuring 4 transmitters and 4 receivers, operating at a 10Mbps data rate. This integrated circuit supports a supply voltage range of 4.5V to 5.5V with a typical operating voltage of 5V. Packaged in a 16-pin SOIC with gold contact plating, it offers a propagation delay of 7ns and a maximum operating temperature of 125°C. RoHS compliant and lead-free, this component is designed for robust interface applications.
PackageD
Current3mA
Quick Jump:
Technical Specifications
Texas Instruments AM26C31CD technical specifications.
General
Package/Case
D
Contact Plating
Gold
Data Rate
10Mbps
ESD Protection
No
Height
1.58mm
Lead Free
Lead Free
Length
9.9mm
Logic Function
Transceiver
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Number of Drivers
4
Number of Receivers
4
Number of Transmitters
4
Operating Supply Current
100uA
Operating Supply Voltage
5V
Output Current
-20mA
Packaging
Rail/Tube
Propagation Delay
7ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Weight
0.004998oz
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments AM26C31CD Datasheet
Download the complete datasheet for Texas Instruments AM26C31CD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

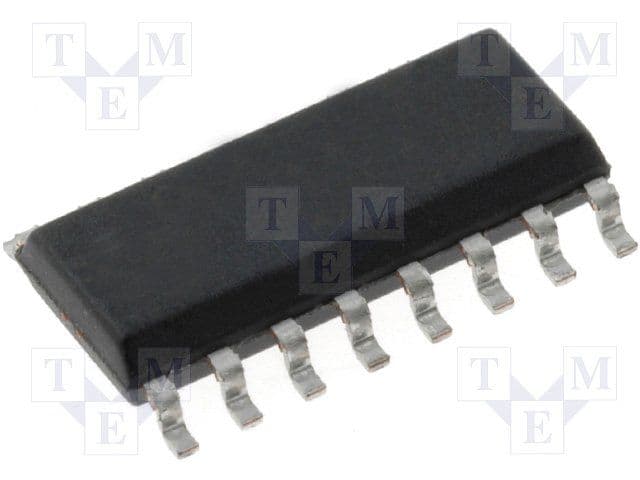

Product Images
