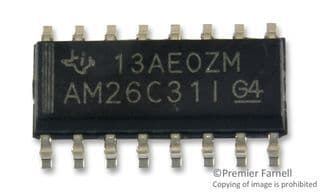

Quadruple differential line driver featuring 4 drivers and 4 transmitters, operating at a 10Mbps data rate. This integrated circuit supports a 4.5V to 5.5V supply voltage range with a typical operating voltage of 5V. It offers a 150mA output current and 7V output voltage, with a 12ns propagation delay. The component is housed in a 16-SOIC package with gold contact plating, measuring 9.9mm in length, 3.91mm in width, and 1.58mm in height. Operating temperature range is -40°C to 125°C, and it is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments AM26C31ID datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments AM26C31ID technical specifications.
| Package/Case | D |
| Contact Plating | Gold |
| Data Rate | 10Mbps |
| ESD Protection | No |
| Height | 1.58mm |
| Lead Free | Lead Free |
| Length | 9.9mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Number of Drivers | 4 |
| Number of Transmitters | 4 |
| Operating Supply Current | 100uA |
| Operating Supply Voltage | 5V |
| Output Current | 150mA |
| Output Voltage | 7V |
| Packaging | Rail/Tube |
| Propagation Delay | 12ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 3mA |
| Weight | 0.004998oz |
| Width | 3.91mm |
| RoHS | Compliant |
