Quad RS-422 bus transceiver featuring 4 transmitters and 4 channels, operating at a 10Mbps data rate. This integrated circuit offers a 5V operating supply voltage with a range of 4.75V to 5.25V. The component is housed in a 16-pin SOIC package with gold contact plating and SMD/SMT termination. It operates within a temperature range of -40°C to 85°C and is RoHS compliant.
PackageD
Current80mA
Quick Jump:
Technical Specifications
Texas Instruments AM26LS31CD technical specifications.
General
Package/Case
D
Contact Plating
Gold
Data Rate
10Mbps
ESD Protection
No
Height
1.58mm
Lead Free
Lead Free
Length
9.9mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
80mA
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Number of Channels
4
Number of Drivers
4
Number of Receivers
4
Number of Transmitters
4
Operating Supply Voltage
5V
Output Current
20mA
Package Quantity
40
Packaging
Rail/Tube
Propagation Delay
30ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
80mA
Termination
SMD/SMT
Weight
0.004998oz
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments AM26LS31CD Datasheet
Download the complete datasheet for Texas Instruments AM26LS31CD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

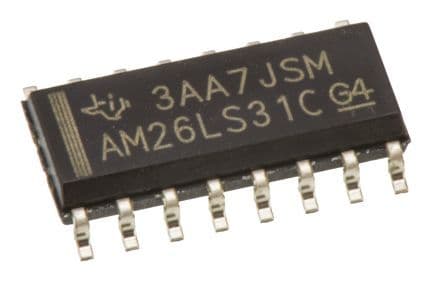

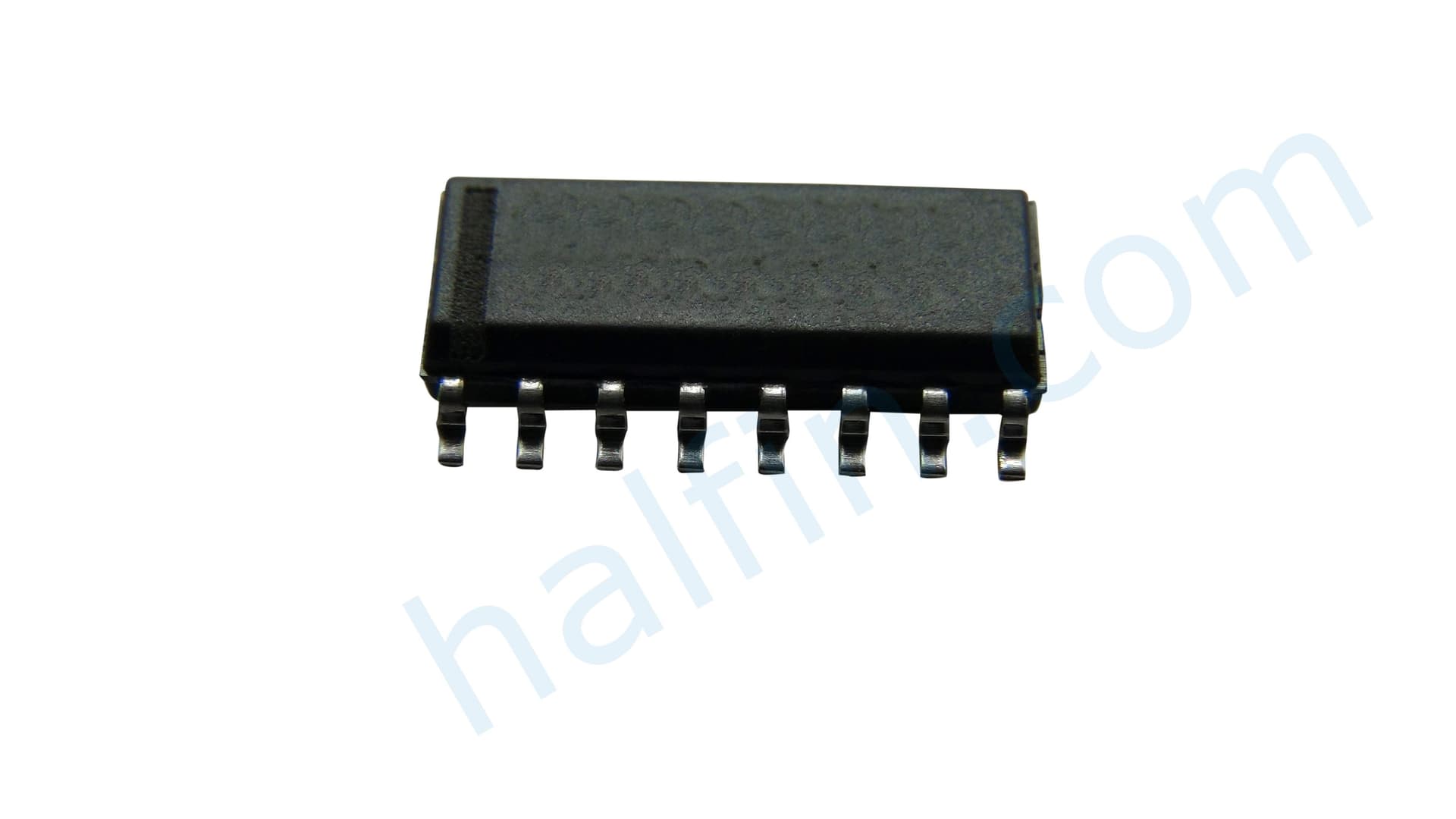

Product Images
