The AM26LS33AMWB is a 4-channel bus transceiver from Texas Instruments, operating within a temperature range of -55°C to 125°C. It has a maximum supply voltage of 5.5V and a minimum supply voltage of 4.5V. The device is not RoHS compliant and contains lead, making it non-lead-free. It features a data rate of 10Mbps and has an ESD protection of no. The AM26LS33AMWB is available in a DFP-16 package type, suitable for surface mount applications.
Current70mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments AM26LS33AMWB technical specifications.
General
| Data Rate | 10Mbps |
| ESD Protection | No |
| Lead Free | Contains Lead |
| Logic Function | Receiver |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Current | 70mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Receivers | 4 |
| Operating Supply Voltage | 5V |
| Packaging | Rail/Tube |
| RoHS Compliant | No |
| Supply Current | 70mA |
Compliance
| RoHS | Not Compliant |
Datasheet
Texas Instruments AM26LS33AMWB Datasheet
Download the complete datasheet for Texas Instruments AM26LS33AMWB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

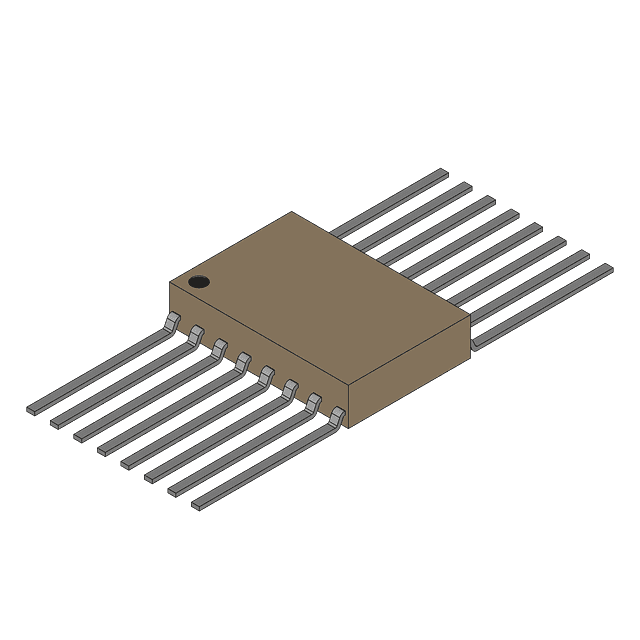

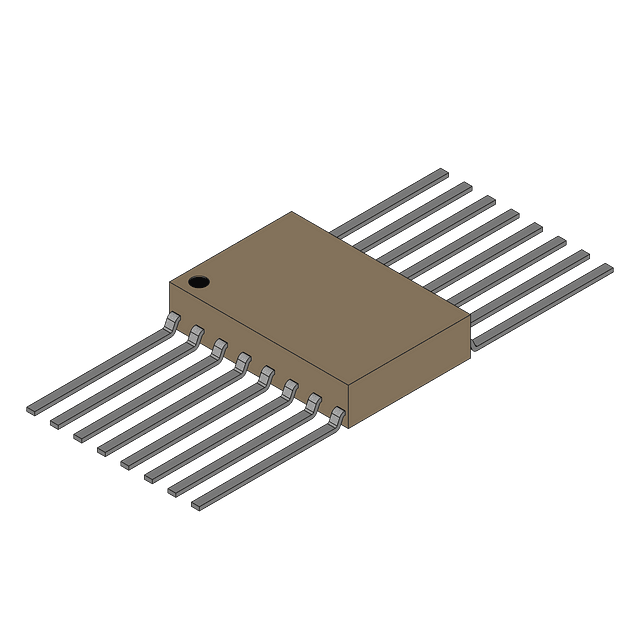

Product Images
