Quadruple differential line driver with 32Mbps data rate, operating from 3V to 3.6V supply. Features +/-15kV IEC ESD protection and gold contact plating. This lead-free, RoHS-compliant integrated circuit is housed in a QFN package and operates across a temperature range of -40°C to 85°C. Designed for high-speed bus transceiver applications, it offers a low supply current of 100uA.
PackageQFN
Current100uA
Quick Jump:
Technical Specifications
Texas Instruments AM26LV31EIRGYR technical specifications.
General
Package/Case
QFN
Contact Plating
Gold
Data Rate
32Mbps
ESD Protection
Yes
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
100uA
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Number of Drivers
4
Number of Transmitters
4
Operating Supply Current
100uA
Operating Supply Voltage
3.3V
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
100uA
Weight
0.001312oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments AM26LV31EIRGYR Datasheet
Download the complete datasheet for Texas Instruments AM26LV31EIRGYR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

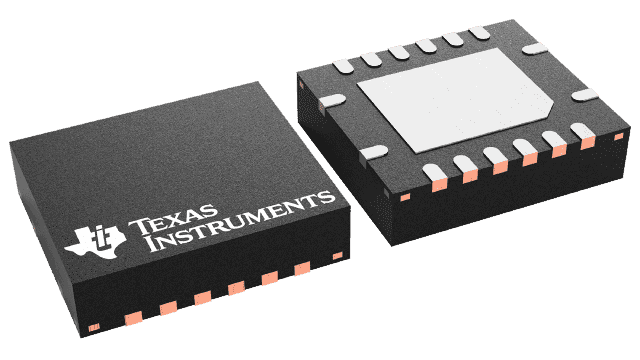

Product Images
