The AM26LV31ID is a 4-channel RS-422 transceiver from Texas Instruments, packaged in a SOIC-16 package. It operates over a temperature range of -45°C to 85°C and has a maximum supply current of 100uA. The device is RoHS compliant and has a maximum supply voltage of 3.6V. It is designed for surface mount applications and is not radiation hardened. The transceiver is lead free and does not have ESD protection.
PackageSOIC
Current100uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments AM26LV31ID technical specifications.
General
| Package/Case | SOIC |
| Contact Plating | Gold |
| ESD Protection | No |
| Interface | RS-422 |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -45°C |
| Max Supply Current | 100uA |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Drivers | 4 |
| Number of Transmitters | 4 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 100uA |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments AM26LV31ID Datasheet
Download the complete datasheet for Texas Instruments AM26LV31ID to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

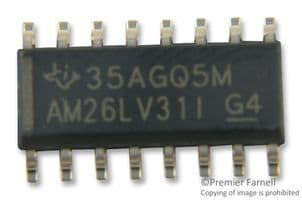

Product Images
