Texas Instruments
AM3894ACYG120
32-BIT, 1200MHz, RISC PROCESSOR, PBGA1031, 25 X 25 MM, 0.65 MM PITCH, GREEN, PLASTIC, FCBGA-1031
Frequency1.2GHz
PackageFCBGA
Voltage1.05V
Quick Jump:
Technical Specifications
Texas Instruments AM3894ACYG120 technical specifications.
General
| Package/Case | FCBGA |
| Contact Plating | Copper, Tin, Silver |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 1.2GHz |
| Lead Free | Contains Lead |
| Max Frequency | 1.2GHz |
| Max Operating Temperature | 95°C |
| Memory Size | 32KB |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 1.05V |
| Min Supply Voltage | 950mV |
| Number of I/Os | 64 |
| Number of Programmable I/O | 64 |
| Number of Timers/Counters | 7 |
| Package Quantity | 1 |
| Packaging | Tray |
| RAM Size | 64KB |
| RoHS Compliant | Yes |
| Series | Sitara ARM®, Cortex™A8 |
| Voltage | 1.05V |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments AM3894ACYG120 Datasheet
Download the complete datasheet for Texas Instruments AM3894ACYG120 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

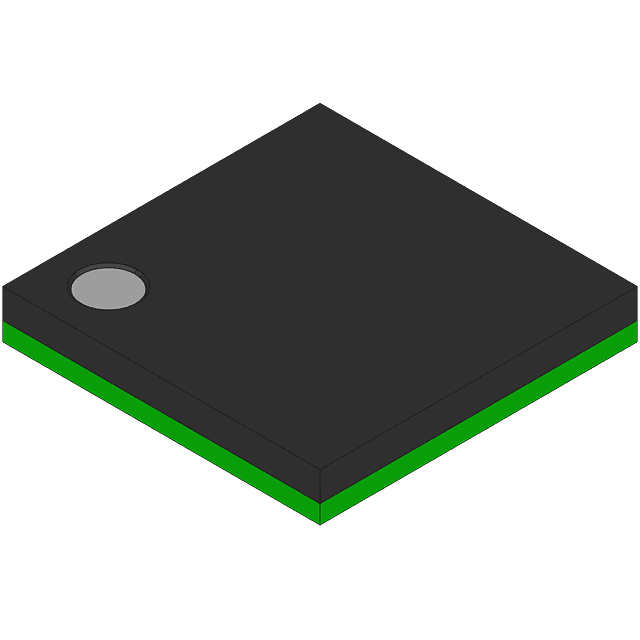

Product Images
