Single-channel isolation amplifier with 100kHz bandwidth and 95dB common mode rejection ratio. Features a 4kV isolation voltage, 200uV input offset voltage, and operates from a 2.7V to 5.5V supply. This 8-pin SOP package component offers a 100kHz gain bandwidth product and a maximum operating temperature of 105°C.
PackageSOP
Current5.4mA
Power82.5mW
Quick Jump:
Technical Specifications
Texas Instruments AMC1200SDUB technical specifications.
General
-3db Bandwidth
100kHz
Amplifier Type
ISOLATION
Bandwidth
100kHz
Package/Case
SOP
Common Mode Rejection Ratio
95dB
Contact Plating
Gold
Dual Supply Voltage
5V
Gain Bandwidth Product
100kHz
Height
3.35mm
Input Offset Voltage (Vos)
200uV
Isolation Voltage
4kV
Lead Free
Lead Free
Length
9.55mm
Max Dual Supply Voltage
5.5V
Max Input Voltage
320mV
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Power Dissipation
44mW
Max Supply Current
10mA
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
2.7V
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Number of Inputs
1
Operating Supply Current
5.4mA
Operating Supply Voltage
5.5V
Output Current
20mA
Output Current per Channel
20mA
Package Quantity
50
Packaging
Bulk
Power Consumption
82.5mW
Power Dissipation
44mW
Power Supply Rejection Ratio (PSRR)
61dB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AMC1200
Supply Current
5.4mA
Width
6.67mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments AMC1200SDUB Datasheet
Download the complete datasheet for Texas Instruments AMC1200SDUB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

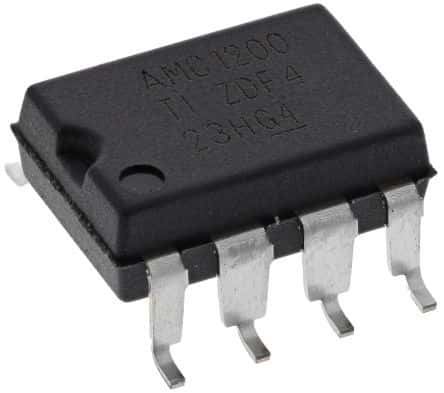

Product Images
