16-bit, isolated delta-sigma modulator with 85dB SNR, designed for analog signal conditioning. Features a 10MHz bandwidth, 40kS/s sampling rate, and 1LSB differential nonlinearity. Operates from a 4.5V to 5.5V supply, with a typical power consumption of 80mW. Housed in an 8-SOP package with gold contact plating, suitable for surface mounting. RoHS compliant and lead-free, with an operating temperature range of -40°C to 105°C.
PackageSOIC
MountingSurface Mount
PolarityBipolar
Power80mW
Quick Jump:
Technical Specifications
Texas Instruments AMC1203BPSAR technical specifications.
General
| Package/Case | SOIC |
| Contact Plating | Gold |
| Differential Nonlinearity | 1LSB |
| Integral Nonlinearity (INL) | 6LSB |
| Interface | Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 110mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 16 |
| Number of Converters | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Bipolar |
| Power Consumption | 80mW |
| Power Dissipation | 80mW |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Sampling Rate | 40000S/s |
| Signal to Noise Ratio (SNR) | 85dB |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments AMC1203BPSAR Datasheet
Download the complete datasheet for Texas Instruments AMC1203BPSAR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

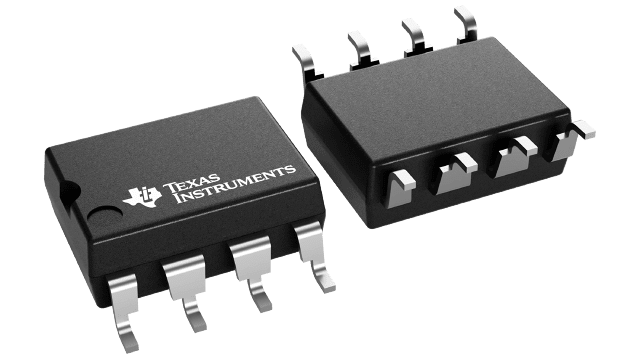

Product Images
