16-bit, 78 kS/s isolated delta-sigma modulator featuring a 1-bit architecture and 88dB SNR. This analog-to-digital converter offers 96dB SFDR and ±8LSB INL, with a differential input and serial interface. Operating from a 3V to 5.5V supply range, it functions between -40°C and 125°C, housed in a 16-SOIC package with gold contact plating.
PackageSOIC
Current10mA
PolarityBipolar
Power88mW
Quick Jump:
Technical Specifications
Texas Instruments AMC1204DWR technical specifications.
General
| Package/Case | SOIC |
| Contact Plating | Gold |
| Conversion Rate | 78KS/s |
| Differential Nonlinearity | 1LSB |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 8LSB |
| Interface | Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 102.4mW |
| Max Supply Voltage (DC) | 5.5V |
| Min Supply Voltage (DC) | 3V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 16 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Inputs | 1 |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Bipolar |
| Power Consumption | 88mW |
| Power Dissipation | 61.6mW |
| Reach SVHC Compliant | No |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Sampling Rate | 78KS/s |
| Signal to Noise Ratio (SNR) | 88dB |
| Spurious-free dynamic range (SFDR) | 96dB |
| Supply Current | 10mA |
| Supply Type | Analog, Digital, Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments AMC1204DWR Datasheet
Download the complete datasheet for Texas Instruments AMC1204DWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

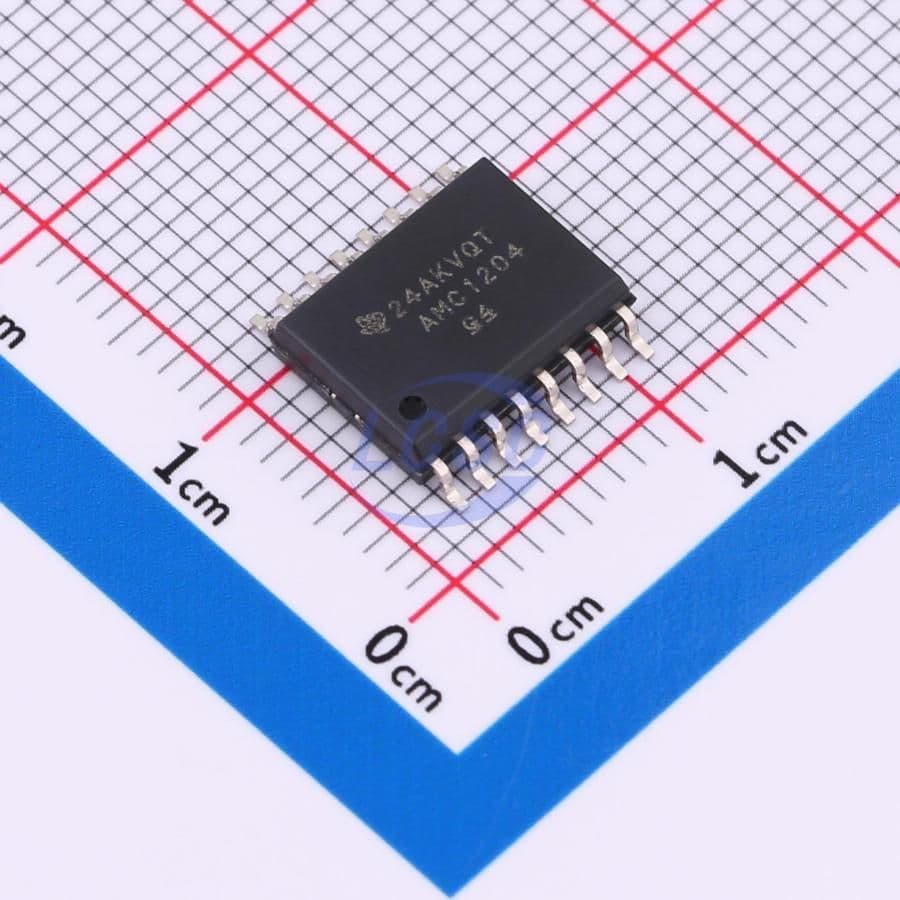

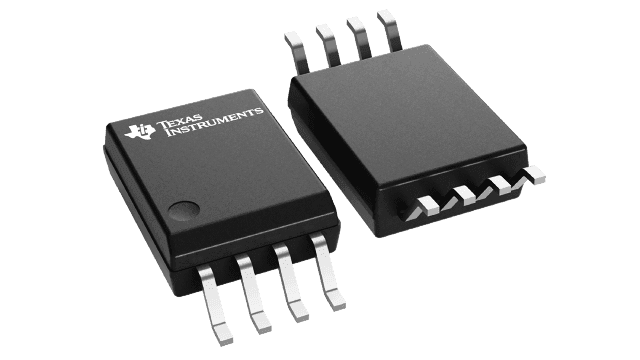

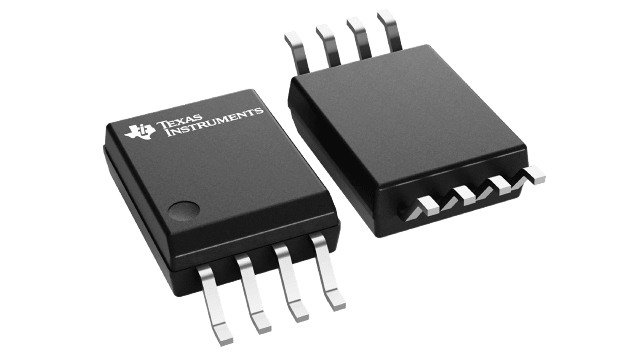

Product Images
