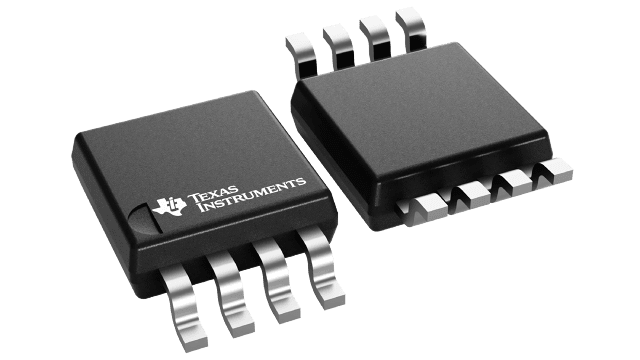

The BQ2057DGK is a lithium-ion battery charger IC from Texas Instruments, designed to operate within a temperature range of -20°C to 70°C. It has a nominal input voltage of 15V and a minimum input voltage of 4.5V. The IC has a maximum supply voltage of 15V and a minimum supply voltage of 4.5V. It provides an output current of 2A and an output voltage of 4.1V. The BQ2057DGK is packaged in a lead-free VSSOP package, measuring 3mm in length and 1.07mm in height, with a thickness of 970um and a width of 3mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments BQ2057DGK datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Battery Type | LITHIUM-ION |
| Package/Case | VSSOP |
| Contact Plating | Gold |
| Height | 1.07mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Supply Voltage | 15V |
| Min Supply Voltage | 4.5V |
| Nominal Input Voltage | 15V |
| Number of Cells | 1 |
| Output Current | 2A |
| Output Voltage | 4.1V |
| Package Quantity | 80 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Thickness | 970um |
| Weight | 0.000917oz |
| Width | 3mm |
| RoHS | Compliant |
