Texas Instruments
BQ20Z90DBT-V150
SBS v1.1 compliant gas gauge for use with the bq29330 30-TSSOP -40 to 85
PackageTSSOP
Storage15000mAh
Quick Jump:
Technical Specifications
Texas Instruments BQ20Z90DBT-V150 technical specifications.
General
Capacity
15000mAh
Package/Case
TSSOP
Contact Plating
Gold
Interface
I2C
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
2.6V
Min Supply Voltage
2.4V
Operating Supply Current
475uA
Operating Supply Voltage
2.5V
Output Voltage
14.4V
Package Quantity
60
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Impedance Track™
Weight
0.003439oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments BQ20Z90DBT-V150 Datasheet
Download the complete datasheet for Texas Instruments BQ20Z90DBT-V150 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

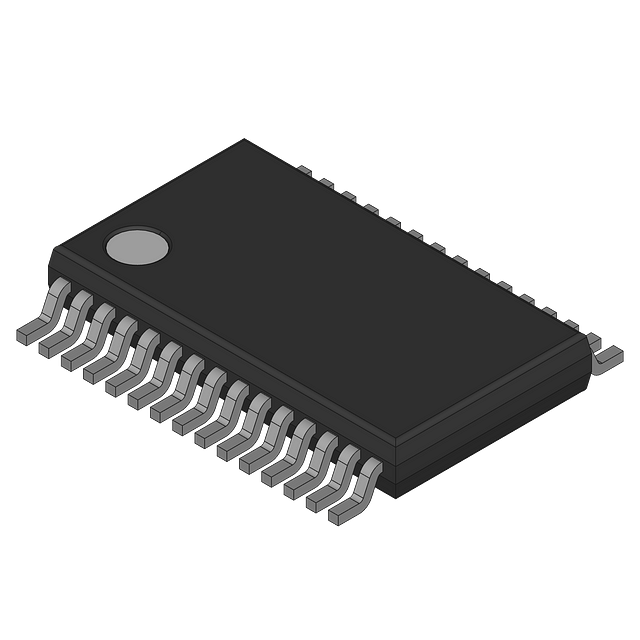

Product Images
