SBS 1.1-compliant gas gauge IC with Impedance Track technology, designed for power management applications. Features a 4.5V to 25V supply voltage range and supports up to 25V output voltage with 100mA output current. Offers robust fault protection including over current, over temperature, short circuit, and over/under voltage conditions. Operates across a wide temperature range from -40°C to 85°C, housed in a 44-TSSOP package with gold contact plating. This lead-free and RoHS-compliant component is supplied on tape and reel.
PackageTSSOP
Storage15000mAh
Quick Jump:
Technical Specifications
Texas Instruments BQ20Z95DBTR technical specifications.
General
| Capacity | 15000mAh |
| Package/Case | TSSOP |
| Contact Plating | Gold |
| Fault Protection | Over Current, Over Temperature, Short Circuit, Over/Under Voltage |
| Interface | SMBus |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 25V |
| Min Supply Voltage | 4.5V |
| Output Current | 100mA |
| Output Voltage | 25V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Impedance Track™ |
| Weight | 0.004914oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments BQ20Z95DBTR Datasheet
Download the complete datasheet for Texas Instruments BQ20Z95DBTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

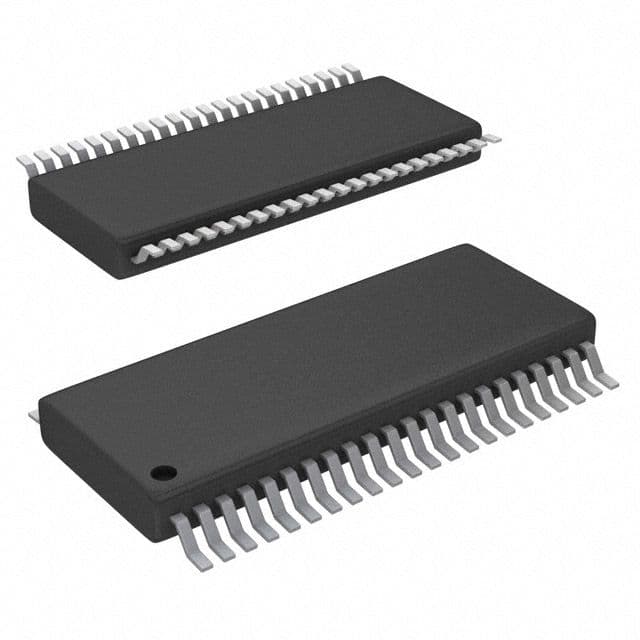

Product Images
