Texas Instruments
BQ24003PWP
1-cell, 1.2-A, linear Li-ion battery charger with bi-color LED and integrated FET 20-HTSSOP 0 to 70
PackageHTSSOP
Quick Jump:
Technical Specifications
Texas Instruments BQ24003PWP technical specifications.
General
Battery Chemistry
LITHIUM-ION
Battery Pack Voltage
4.2V
Package/Case
HTSSOP
Contact Plating
Gold
Fault Protection
Over Temperature
Lead Free
Lead Free
Max Charge Current
1.2A
Min Input Voltage
4.5V
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Supply Voltage
10V
Min Supply Voltage
4.5V
Number of Cells
1
Output Current
1.2A
Output Voltage
4.2V
Package Quantity
70
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Weight
0.002885oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments BQ24003PWP Datasheet
Download the complete datasheet for Texas Instruments BQ24003PWP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

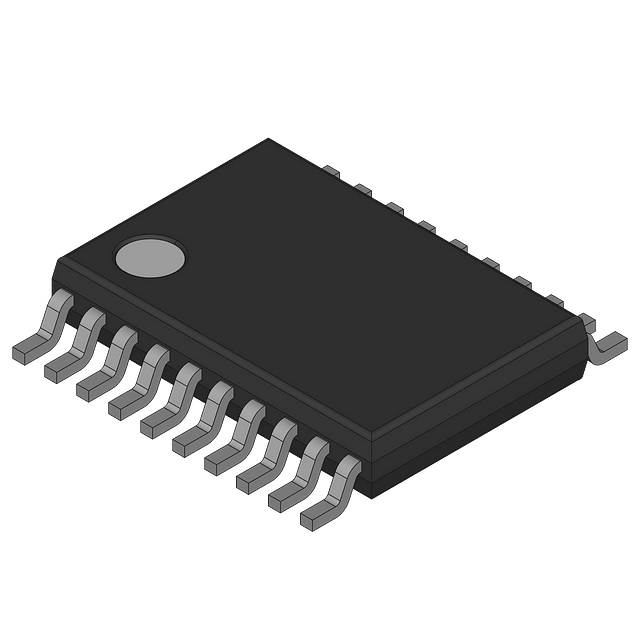

Product Images
