The BQ24012DRCRG4 is a 1A 4.2V battery charger IC from Texas Instruments. It is available in a VSON package and is designed for short circuit protection. The IC operates within a temperature range of -40°C to 125°C and is RoHS compliant. It is part of the bqTINY series and is packaged in tape and reel with 3000 units per reel.
PackageVSON
Quick Jump:
Technical Specifications
Texas Instruments BQ24012DRCRG4 technical specifications.
General
| Battery Pack Voltage | 4.2V |
| Package/Case | VSON |
| Fault Protection | Short Circuit |
| Lead Free | Contains Lead |
| Max Charge Current | 1A |
| Min Input Voltage | 3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 16.5V |
| Min Supply Voltage | 3V |
| Number of Cells | 1 |
| Output Current | 1A |
| Output Voltage | 4.2V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | bqTINY™ |
| Weight | 0.000885oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments BQ24012DRCRG4 Datasheet
Download the complete datasheet for Texas Instruments BQ24012DRCRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

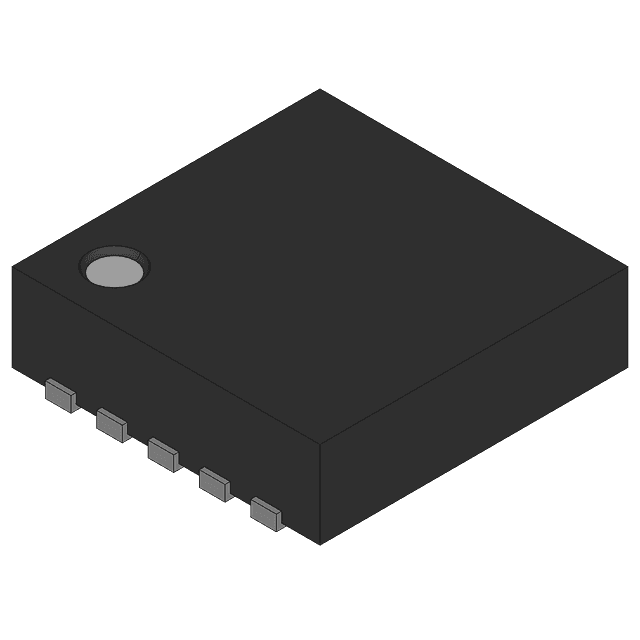

Product Images
