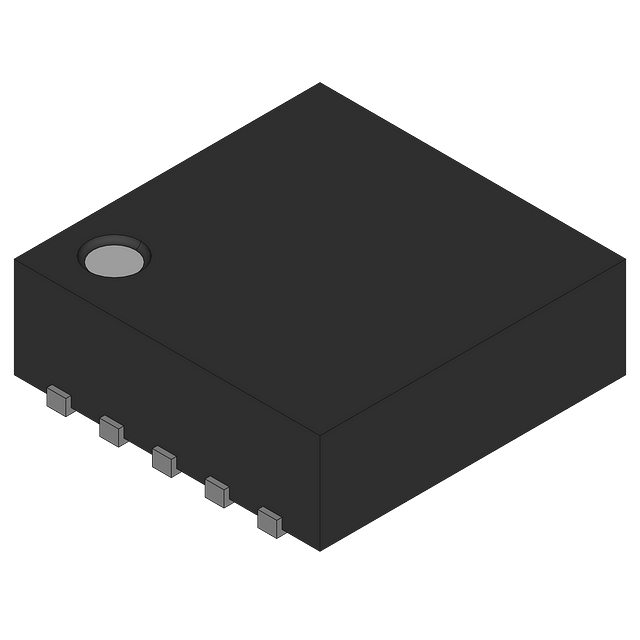

The BQ24020DRCRG4 is a 4.2V 1A USB power management IC from Texas Instruments. It operates over a temperature range of -40°C to 125°C and is packaged in a VSON package. The device features a maximum supply voltage of 6.5V and a minimum input voltage of 4.5V. It is RoHS compliant and lead free. The BQ24020DRCRG4 is designed for use in battery-powered applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments BQ24020DRCRG4 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments BQ24020DRCRG4 technical specifications.
| Battery Pack Voltage | 4.2V |
| Package/Case | VSON |
| Contact Plating | Gold |
| Fault Protection | Over Temperature |
| Interface | USB |
| Lead Free | Lead Free |
| Max Charge Current | 500mA |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 6.5V |
| Min Supply Voltage | 4.5V |
| Number of Cells | 1 |
| Output Current | 1A |
| Output Voltage | 4.2V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | bqTINY™-II |
| Weight | 0.000885oz |
| RoHS | Compliant |
