Texas Instruments
BQ24038RHLR
Standalone 1-cell, 1.5-A battery charger with dynamic Power Path, output reg. to 4.4V, Vbat 4.4V 20-VQFN -40 to 85
PackageVQFN EP
Quick Jump:
Technical Specifications
Texas Instruments BQ24038RHLR technical specifications.
General
Battery Pack Voltage
4.36V
Package/Case
VQFN EP
Contact Plating
Gold
Fault Protection
Over Temperature, Short Circuit, Reverse Current
Interface
USB
Lead Free
Lead Free
Max Charge Current
1.5A
Min Input Voltage
4.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
16V
Min Supply Voltage
4.35V
Number of Cells
1
Output Current
1.5A
Output Voltage
4.4V
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
bqTINY™ III
Weight
0.001668oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments BQ24038RHLR Datasheet
Download the complete datasheet for Texas Instruments BQ24038RHLR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

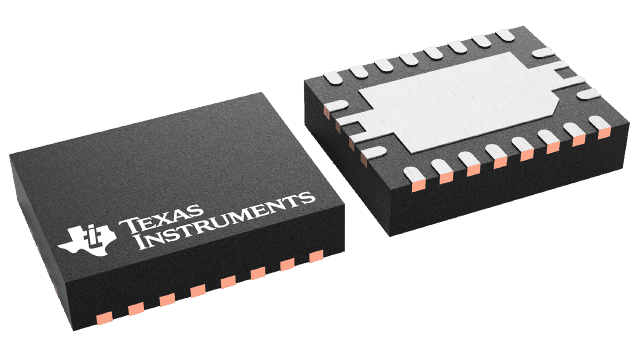

Product Images
