Texas Instruments
BQ24050DSQR
1-cell, 1-A, Li-ion linear battery charger with automatic AC/USB detection 10-WSON
PackageSON
Quick Jump:
Technical Specifications
Texas Instruments BQ24050DSQR technical specifications.
General
Battery Pack Voltage
4.2V
Package/Case
SON
Contact Plating
Gold
Fault Protection
Over Voltage, Over Temperature, Short Circuit
Interface
USB
Lead Free
Lead Free
Max Charge Current
800mA
Min Input Voltage
3.5V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Power Dissipation
1.66W
Max Supply Voltage
6.45V
Min Supply Voltage
4.75V
Number of Cells
1
Operating Supply Current
800uA
Output Current
800mA
Output Voltage
4.2V
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments BQ24050DSQR Datasheet
Download the complete datasheet for Texas Instruments BQ24050DSQR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

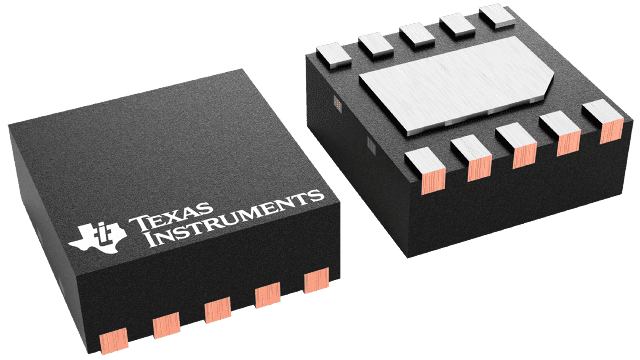

Product Images
