Linear battery charger IC for single-cell Li-Ion/Li-Pol batteries, featuring a 4.2V output voltage and up to 800mA charge current. This power management component operates with input voltages from 3.5V to 28V and a supply voltage range of 4.75V to 6.45V. The 10-pin WSON EP package offers a compact 2.1mm x 2.1mm x 0.75mm footprint with gold contact plating and SMD/SMT termination. Designed for lead-free and RoHS compliant applications, it functions within an operating temperature range of 0°C to 125°C.
PackageSON
Quick Jump:
Technical Specifications
Texas Instruments BQ24050DSQT technical specifications.
General
Package/Case
SON
Contact Plating
Gold
Control Interface
PARALLEL
Height
0.75mm
Lead Free
Lead Free
Length
2.1mm
Max Charge Current
800mA
Max Input Voltage
28V
Min Input Voltage
3.5V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
800mA
Max Output Voltage
4.2V
Min Output Voltage
4.16V
Max Supply Voltage
6.45V
Min Supply Voltage
4.75V
Number of Cells
1
Operating Supply Current
800mA
Output Current
800mA
Output Voltage
4.2V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Width
2.1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments BQ24050DSQT Datasheet
Download the complete datasheet for Texas Instruments BQ24050DSQT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

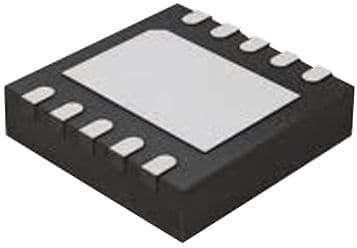

Product Images
