Standalone 1-cell linear charger IC for Lithium-Ion batteries, featuring a 1.5A maximum charge current and 4.2V battery pack voltage. This power management IC supports a 4.2V output voltage and includes Power Path functionality. It offers robust fault protection against over voltage, over temperature, short circuit, and reverse current. The component operates within a temperature range of -40°C to 125°C and is supplied in a 16-VQFN EP package with gold contact plating. Interface is USB, and the product is RoHS compliant and lead-free.
PackageVQFN EP
Quick Jump:
Technical Specifications
Texas Instruments BQ24072RGTR technical specifications.
General
| Battery Chemistry | LITHIUM-ION |
| Battery Pack Voltage | 4.2V |
| Package/Case | VQFN EP |
| Contact Plating | Gold |
| Fault Protection | Over Voltage, Over Temperature, Short Circuit, Reverse Current |
| Interface | USB |
| Lead Free | Lead Free |
| Max Charge Current | 1.5A |
| Min Input Voltage | 4.3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 6.4V |
| Min Supply Voltage | 4.35V |
| Number of Cells | 1 |
| Output Current | 1.5A |
| Output Voltage | 4.2V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Weight | 0.000808oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments BQ24072RGTR Datasheet
Download the complete datasheet for Texas Instruments BQ24072RGTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

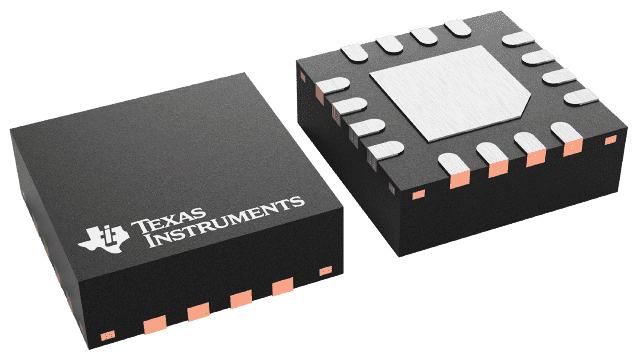

Product Images
