Texas Instruments
BQ24109RHLR
Standalone 1cell 2A synchronous Buck battery charger with longer deglitch time 20-VQFN -40 to 125

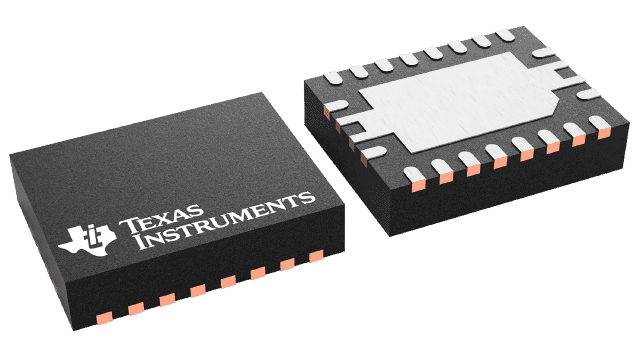

PackageVQFN EP
Quick Jump:
Technical Specifications
Texas Instruments BQ24109RHLR technical specifications.
General
| Package/Case | VQFN EP |
| Contact Plating | Gold |
| Lead Free | Lead Free |
| Min Input Voltage | 4.3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 4.35V |
| Number of Cells | 1 |
| Output Current | 2A |
| Output Voltage | 4.2V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | bqSWITCHER™ |
| Weight | 0.001668oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments BQ24109RHLR Datasheet
Download the complete datasheet for Texas Instruments BQ24109RHLR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
