Texas Instruments
BQ24120RHLR
Synchronous Switch-mode 1-cell Li-ion charger w/2A FET, enhanced EMI performance 20-VQFN -40 to 85
PackageVQFN EP
Quick Jump:
Technical Specifications
Texas Instruments BQ24120RHLR technical specifications.
General
Battery Pack Voltage
4.2V
Package/Case
VQFN EP
Contact Plating
Gold
Fault Protection
Over Temperature
Lead Free
Lead Free
Max Charge Current
2A
Min Input Voltage
4.3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
16V
Min Supply Voltage
4.35V
Number of Cells
1
Output Current
2A
Output Voltage
4.2V
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
bqSWITCHER™
Weight
0.001668oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments BQ24120RHLR Datasheet
Download the complete datasheet for Texas Instruments BQ24120RHLR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

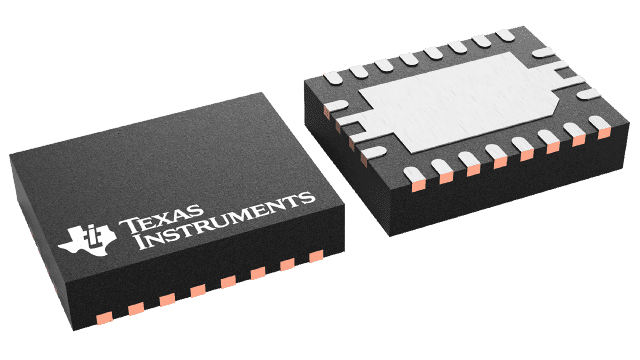

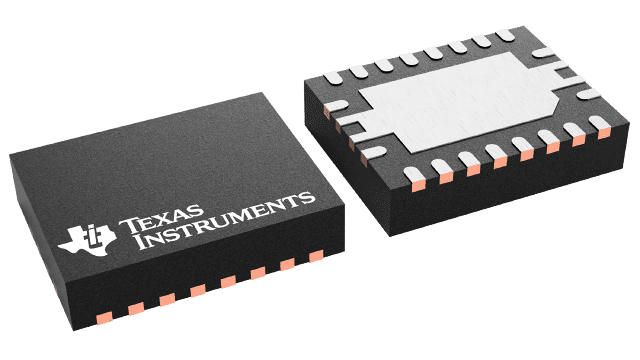

Product Images
