1-cell, 2.5-A Li-ion battery charger IC featuring dual-input capability, Power Path management, and D+/D- support with JEITA compliance. Delivers up to 2.5A charge and output current with a maximum output voltage of 4.44V. Operates across a wide temperature range of -40°C to 85°C, with input voltage support from 4V to 10V. This lead-free component is packaged in a compact 3.1mm x 3.1mm x 0.595mm DSBGA with copper, tin, and silver contact plating.
Quick Jump:
Technical Specifications
Texas Instruments BQ24160YFFT technical specifications.
General
Battery Type
LITHIUM-ION
Contact Plating
Copper, Tin, Silver
Height
0.595mm
Lead Free
Lead Free
Length
3.1mm
Max Charge Current
2.5A
Min Input Voltage
4V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
2.5A
Max Output Voltage
4.44V
Min Output Voltage
3.5V
Max Supply Voltage
10V
Min Supply Voltage
4.2V
Number of Cells
1
Operating Supply Current
15mA
Output Current
2.5A
Output Voltage
4.44V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments BQ24160YFFT Datasheet
Download the complete datasheet for Texas Instruments BQ24160YFFT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

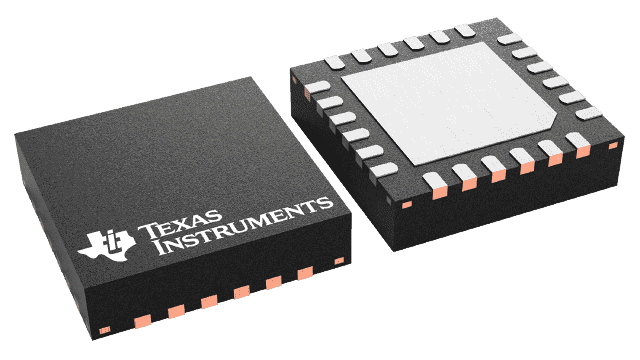

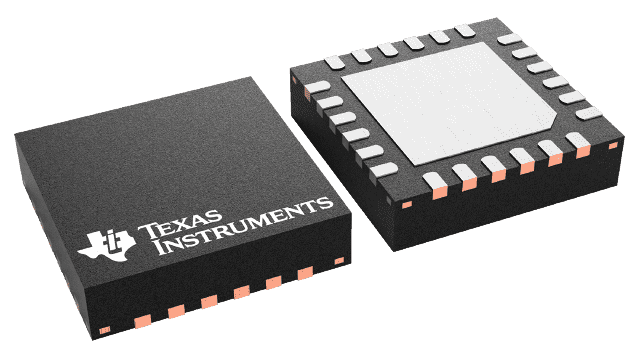

Product Images
