1-cell, 2.5-A switchmode Li-ion battery charger with Power Path management and I²C interface. Features a maximum charge current of 2.5A and a maximum output current of 3A. Operates with a supply voltage range of 4.2V to 6V and an output voltage up to 4.44V. Packaged in a 24-VQFN with gold contact plating, suitable for surface mounting. Extended operating temperature range from -40°C to 85°C. RoHS compliant and lead-free.
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments BQ24168RGET technical specifications.
General
| Package/Case | VQFN |
| Contact Plating | Gold |
| Height | 0.92mm |
| Lead Free | Lead Free |
| Length | 4.15mm |
| Max Charge Current | 2.5A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Max Output Voltage | 4.44V |
| Min Output Voltage | 3.5V |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 4.2V |
| Mount | Surface Mount |
| Number of Cells | 1 |
| Operating Supply Current | 2.5A |
| Output Current | 2.5A |
| Output Voltage | 4.44V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Weight | 0.001926oz |
| Width | 4.15mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments BQ24168RGET Datasheet
Download the complete datasheet for Texas Instruments BQ24168RGET to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

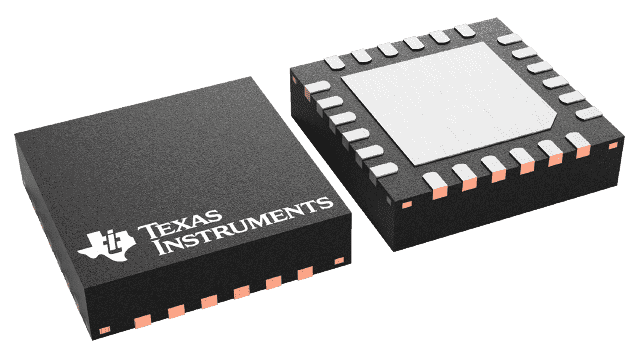

Product Images
