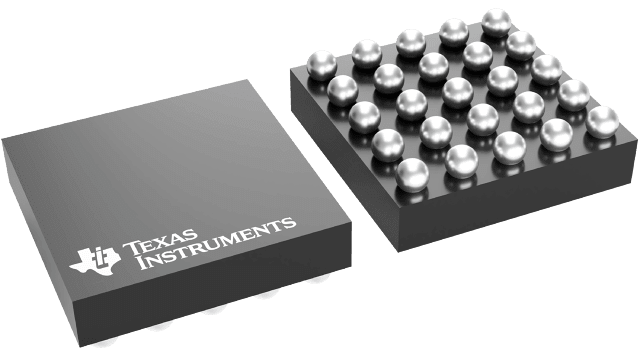

The BQ24180YFFT is a single-cell power management IC from Texas Instruments. It operates within a temperature range of -30°C to 85°C and has a maximum supply voltage of 16.5V and minimum supply voltage of 4V. The IC has an operating supply current of 95mA and an output current of 1.5A at an output voltage of 3.5V. It is available in a DSBGA-25 package and is packaged on a tape and reel. The BQ24180YFFT is compliant with RoHS regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments BQ24180YFFT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Contact Plating | Copper, Tin, Silver |
| Lead Free | Lead Free |
| Max Charge Current | 1.55A |
| Min Input Voltage | 4V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Supply Voltage | 16.5V |
| Min Supply Voltage | 4V |
| Number of Cells | 1 |
| Operating Supply Current | 95mA |
| Operating Supply Voltage | 16V |
| Output Current | 1.5A |
| Output Voltage | 3.5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| RoHS | Compliant |
