Texas Instruments
BQ24251YFFR
2A Single Input I2C/Standalone Switch-Mode Li-Ion Battery Charger 30-DSBGA -40 to 85
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments BQ24251YFFR technical specifications.
General
| Battery Chemistry | LITHIUM-ION |
| Battery Pack Voltage | 4.2V |
| Package/Case | BGA |
| Contact Plating | Copper, Tin, Silver |
| Fault Protection | Over Current, Over Voltage, Over Temperature |
| Interface | I2C |
| Lead Free | Lead Free |
| Max Charge Current | 2A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 10.5V |
| Mount | Surface Mount |
| Number of Cells | 1 |
| Operating Supply Current | 13mA |
| Output Current | 2A |
| Output Voltage | 4.2V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments BQ24251YFFR Datasheet
Download the complete datasheet for Texas Instruments BQ24251YFFR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

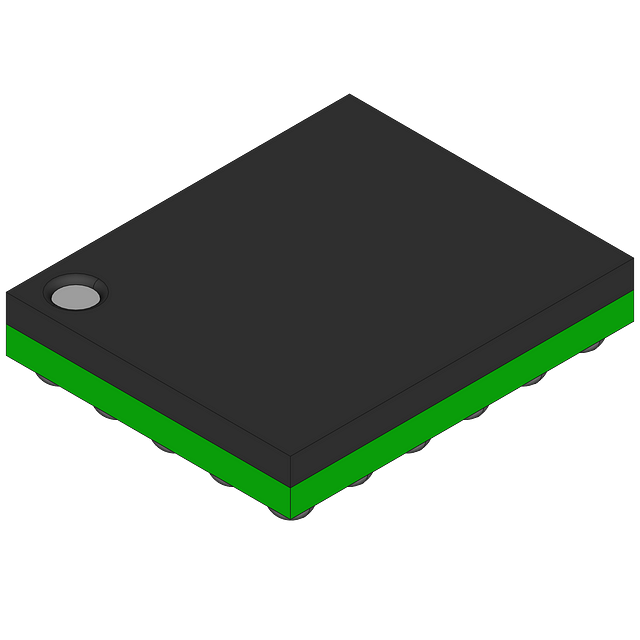

Product Images
