Texas Instruments
BQ24296RGER
1-cell, 3-A, I<sup>2</sup>C controlled buck charger with adjustable voltage & USB OTG and min system regulation 24-VQFN -40 to 85
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments BQ24296RGER technical specifications.
General
Battery Pack Voltage
4.2V
Package/Case
VQFN
Contact Plating
Gold
Fault Protection
Over Current, Over Voltage, Over Temperature
Interface
I2C
Lead Free
Lead Free
Max Charge Current
3A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
6.2V
Mount
Surface Mount
Number of Cells
1
Operating Supply Voltage
6V
Output Current
3A
Output Voltage
5.5V
Package Quantity
3000
Packaging
Tape and Reel
RoHS Compliant
Yes
Weight
0.001926oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments BQ24296RGER Datasheet
Download the complete datasheet for Texas Instruments BQ24296RGER to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

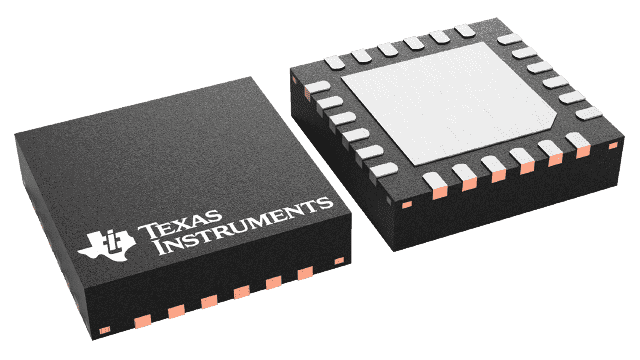

Product Images
