Texas Instruments
BQ24380DSGR
Overvoltage/Overcurrent Protection IC and Li+ Charger Front End Protection IC with LDO Mode, 6.3 OVP 8-WSON -40 to 125
Quick Jump:
Technical Specifications
Texas Instruments BQ24380DSGR technical specifications.
General
Battery Chemistry
LITHIUM-ION
Contact Plating
Gold
Fault Protection
Over Current, Over Temperature, Short Circuit, Over/Under Voltage
Height
0.75mm
Lead Free
Lead Free
Length
2mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
30V
Min Supply Voltage
3.3V
Output Voltage
5.5V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments BQ24380DSGR Datasheet
Download the complete datasheet for Texas Instruments BQ24380DSGR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

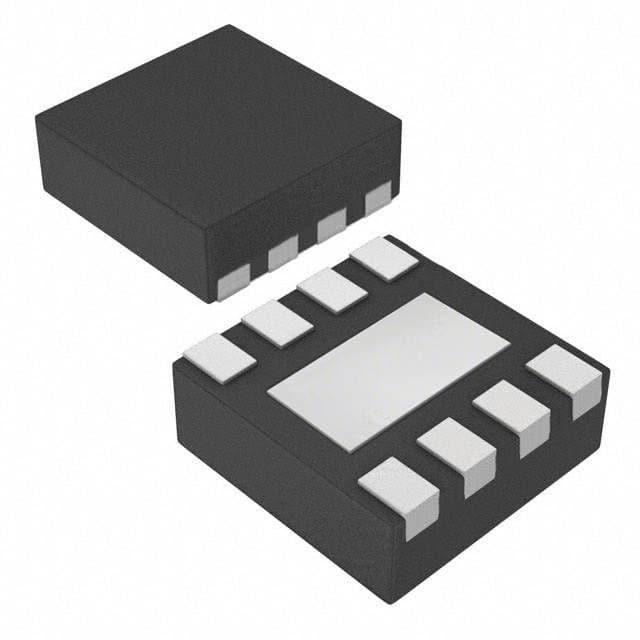

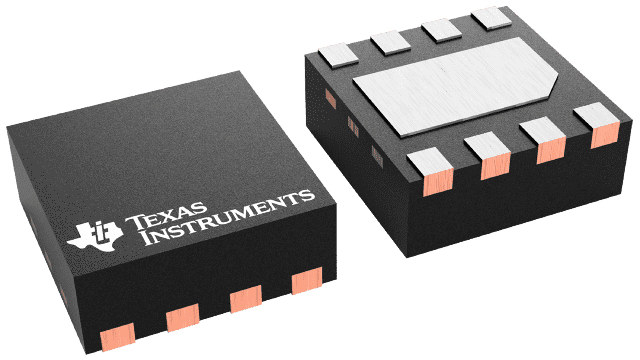

Product Images
