Standalone 1-cell linear battery charger with 4.2V charge voltage and 250mA maximum charge current. Features over voltage, over temperature, and short circuit fault protection. Operates from 0°C to 125°C with a maximum supply voltage of 6.45V. Surface mount component with copper, tin, and silver contact plating, packaged in cut tape. Lead-free and RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments BQ25101YFPR technical specifications.
General
| Battery Pack Voltage | 4.2V |
| Contact Plating | Copper, Tin, Silver |
| Fault Protection | Over Voltage, Over Temperature, Short Circuit |
| Lead Free | Lead Free |
| Max Charge Current | 250mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 6.45V |
| Mount | Surface Mount |
| Number of Cells | 1 |
| Output Current | 250mA |
| Output Voltage | 4.2V |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments BQ25101YFPR Datasheet
Download the complete datasheet for Texas Instruments BQ25101YFPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

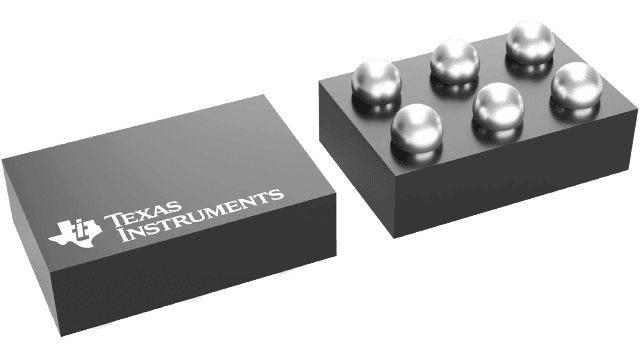

Product Images
