Texas Instruments
BQ27425YZFR-G2B
System-side Impedance Track™; fuel gauge LiMn2O4 battery 15-DSBGA -40 to 85
Storage4000mAh
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments BQ27425YZFR-G2B technical specifications.
General
| Battery Chemistry | LITHIUM-ION |
| Capacity | 4000mAh |
| Contact Plating | Copper, Tin, Silver |
| Interface | I2C |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 4.5V |
| Min Supply Voltage | 2.45V |
| Mount | Surface Mount |
| Number of Cells | 1 |
| Output Current | 5mA |
| Output Voltage | 2.6V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | Impedance Track™ |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments BQ27425YZFR-G2B Datasheet
Download the complete datasheet for Texas Instruments BQ27425YZFR-G2B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

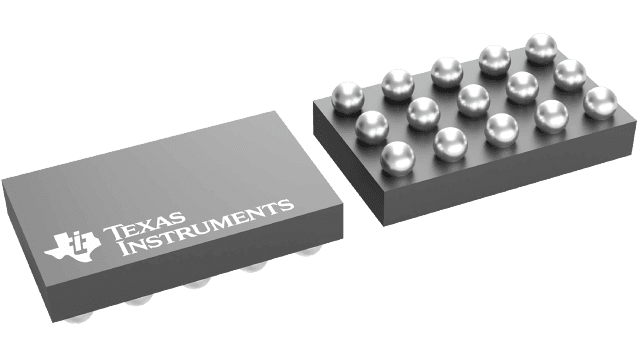

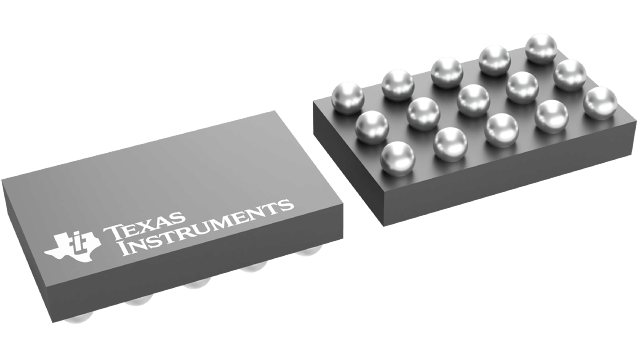

Product Images
