Texas Instruments
BQ27510DRZR
System side Impedance Track™; fuel gauge with integrated LDO 12-SON -40 to 85
PackageSON
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments BQ27510DRZR technical specifications.
General
| Battery Chemistry | LITHIUM-ION |
| Package/Case | SON |
| Contact Plating | Gold |
| Interface | I2C |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Cells | 1 |
| Operating Supply Current | 103uA |
| Output Voltage | 2.57V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Impedance Track™ |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments BQ27510DRZR Datasheet
Download the complete datasheet for Texas Instruments BQ27510DRZR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

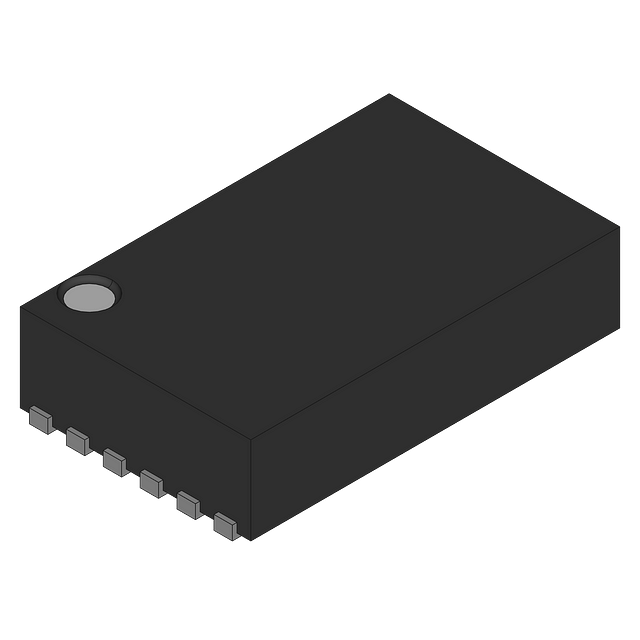

Product Images
