PackageModule
Current50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments BQ4011MA-150 technical specifications.
General
Access Time
150ns
Access Time-Max
150ns
Package/Case
Module
Data Bus Width
8b
Density
256Kb
Interface
Parallel
Lead Free
Contains Lead
Max Operating Temperature
70°C
Max Supply Voltage
5.5V
Memory Size
256Kb
Memory Type
Non-Volatile, , NVSRAM
Min Operating Temperature
0°C
Min Supply Voltage
4.75V
Mount
Through Hole
Operating Supply Current
50mA
Operating Supply Voltage
5V
Organization
32KX8
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
50mA
Word Size
8b
Compliance
RoHS
Compliant
Datasheet
Texas Instruments BQ4011MA-150 Datasheet
Download the complete datasheet for Texas Instruments BQ4011MA-150 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

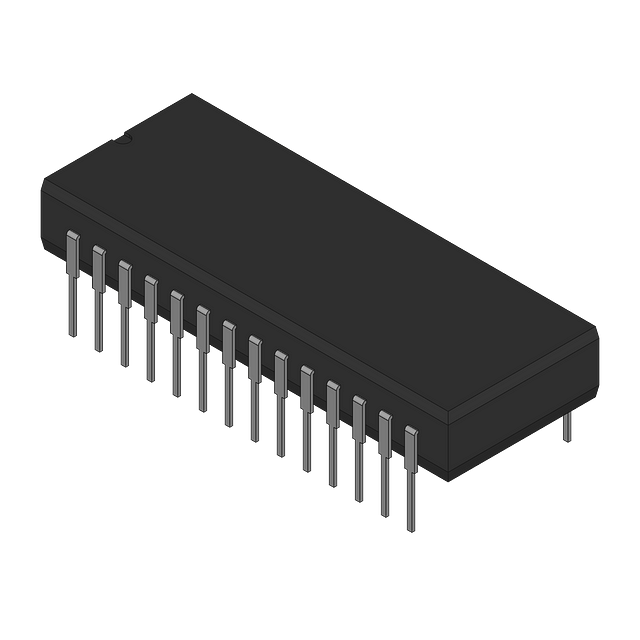

Product Images
