Frequency85GHz
PackageModule
Current50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments BQ4013YMA-85 technical specifications.
General
Access Time
85ns
Access Time-Max
85ns
Package/Case
Module
Contact Plating
Tin, Matte
Data Bus Width
8b
Density
1Mb
Frequency
85GHz
Interface
Parallel
Lead Free
Contains Lead
Max Operating Temperature
70°C
Max Supply Voltage
5.5V
Memory Size
1Mb
Memory Type
Non-Volatile, , NVSRAM
Min Operating Temperature
0°C
Min Supply Voltage
4.5V
Mount
Through Hole
Operating Supply Current
50mA
Operating Supply Voltage
5V
Organization
128KX8
Packaging
Rail/Tube
RoHS Compliant
Yes
Supply Current
50mA
Word Size
8b
Compliance
RoHS
Compliant
Datasheet
Texas Instruments BQ4013YMA-85 Datasheet
Download the complete datasheet for Texas Instruments BQ4013YMA-85 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

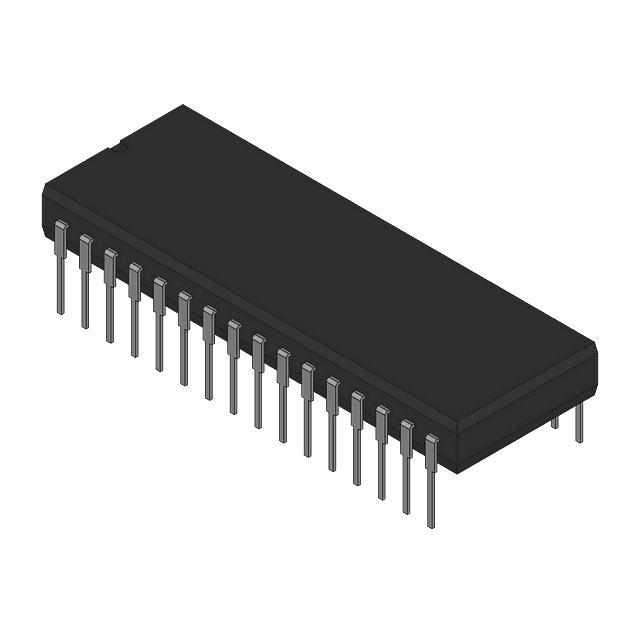

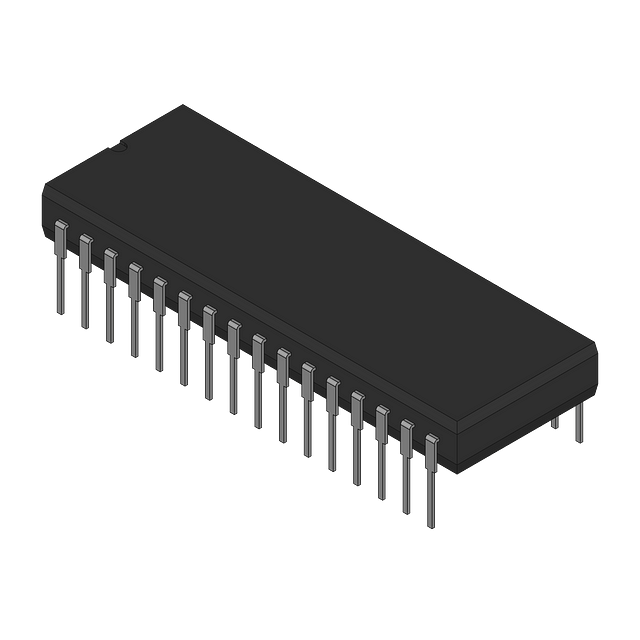

Product Images
