Texas Instruments
BQ4013YMA-85N
128KX8 NON-VOLATILE SRAM MODULE, 85ns, PDMA32, ROHS COMPLIANT, PLASTIC, DIP-32
PackageModule
Current50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments BQ4013YMA-85N technical specifications.
General
Access Time
85ns
Access Time-Max
85ns
Package/Case
Module
Contact Plating
Tin, Matte
Data Bus Width
8b
Density
1Mb
Interface
Parallel
Lead Free
Contains Lead
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
1Mb
Memory Type
Non-Volatile, , NVSRAM
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Mount
Through Hole
Operating Supply Current
50mA
Operating Supply Voltage
5V
Organization
128KX8
Packaging
Tray
RoHS Compliant
Yes
Supply Current
50mA
Word Size
8b
Compliance
RoHS
Compliant
Datasheet
Texas Instruments BQ4013YMA-85N Datasheet
Download the complete datasheet for Texas Instruments BQ4013YMA-85N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

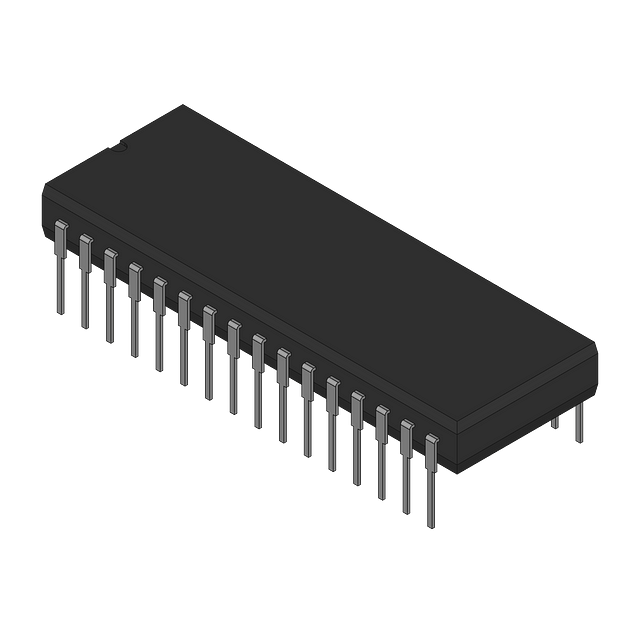

Product Images
