Texas Instruments
BQ7692006PW
3 to 5-Series Cell Li-Ion and Li-Phosphate Battery Monitor (bq76940 Family) 20-TSSOP -40 to 85
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments BQ7692006PW technical specifications.
General
Package/Case
TSSOP
Contact Plating
Gold
Fault Protection
Over Current, Short Circuit, Over/Under Voltage
Interface
I2C
Lead Free
Lead Free
Length
6.5mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
25V
Min Supply Voltage
6V
Mount
Surface Mount
Output Voltage
3.6V
Package Quantity
70
Packaging
Rail/Tube
RoHS Compliant
Yes
Thickness
1mm
Weight
0.002758oz
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments BQ7692006PW Datasheet
Download the complete datasheet for Texas Instruments BQ7692006PW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

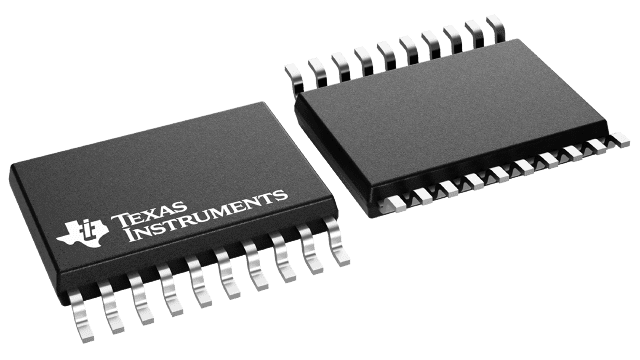

Product Images
