Texas Instruments
BQ7693006DBT
6 to 10-Series Cell Li-Ion and Li-Phosphate Battery Monitor (bq76940 Family) 30-TSSOP -40 to 85
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments BQ7693006DBT technical specifications.
General
| Package/Case | TSSOP |
| Contact Plating | Gold |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 25V |
| Min Supply Voltage | 6V |
| Mount | Surface Mount |
| Output Voltage | 16V |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | BQ76930 |
| Weight | 0.003439oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments BQ7693006DBT Datasheet
Download the complete datasheet for Texas Instruments BQ7693006DBT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

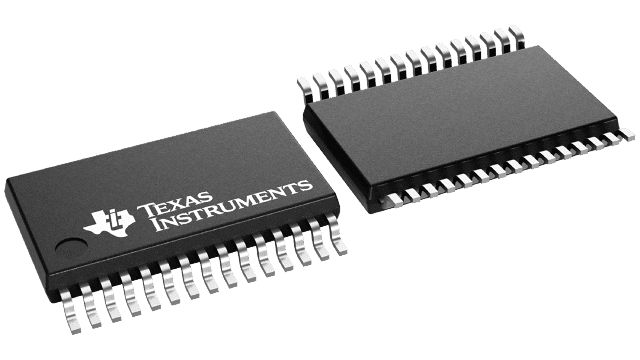

Product Images
