Texas Instruments
BQ7694001DBTR
9 to 15-series cell li-ion and li-phosphate battery monitor (bq76940 family) 44-TSSOP -40 to 85
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments BQ7694001DBTR technical specifications.
General
Package/Case
TSSOP
Contact Plating
Gold
Fault Protection
Over Current, Short Circuit, Over/Under Voltage
Interface
I2C
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Operating Supply Voltage
25V
Output Voltage
16V
Package Quantity
2000
Packaging
Tape and Reel
RoHS Compliant
Yes
Weight
0.004914oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments BQ7694001DBTR Datasheet
Download the complete datasheet for Texas Instruments BQ7694001DBTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

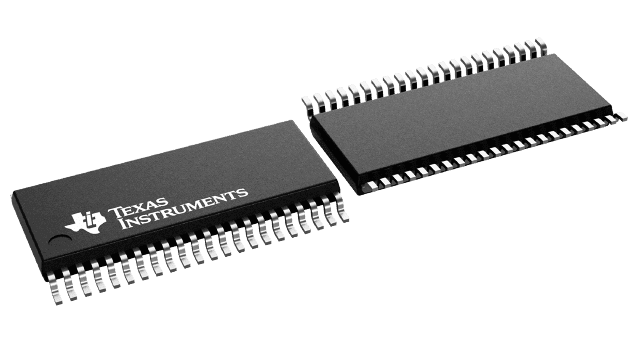

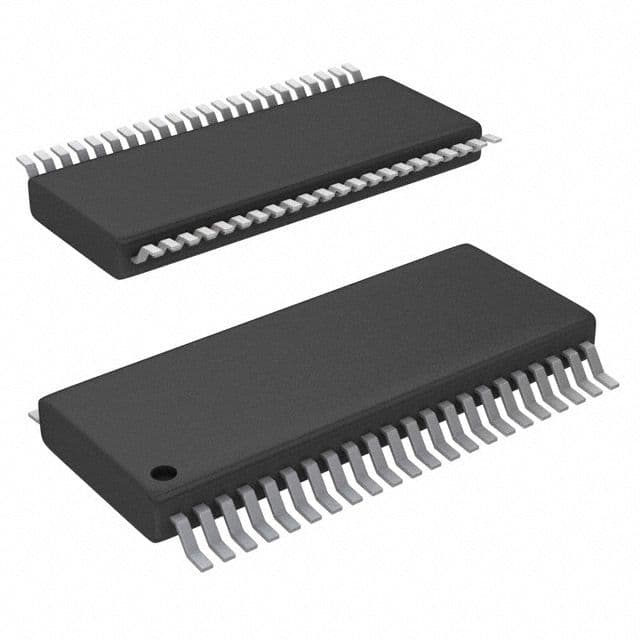

Product Images
