Texas Instruments
BQ7694003DBTR
9 to 15-series cell li-ion and li-phosphate battery monitor (bq76940 family) 44-TSSOP -40 to 85
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments BQ7694003DBTR technical specifications.
General
| Package/Case | TSSOP |
| Contact Plating | Gold |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Supply Voltage | 25V |
| Output Voltage | 16V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | BQ76940 |
| Weight | 0.004914oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments BQ7694003DBTR Datasheet
Download the complete datasheet for Texas Instruments BQ7694003DBTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

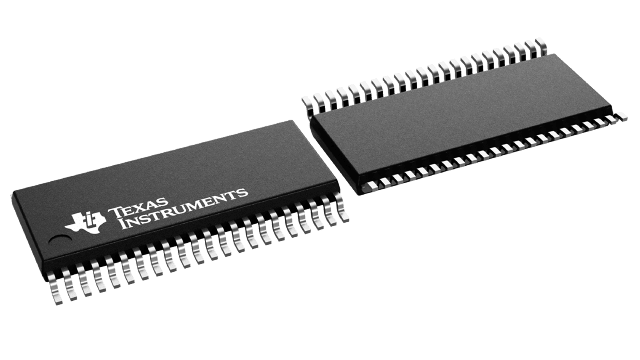

Product Images
