Texas Instruments
BQ771604DPJT
Family Overvoltage Protection for 2 to 4-Series Cell Li-Ion Batts w Ext Delay Capacitor 8-WSON -40 to 85
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments BQ771604DPJT technical specifications.
General
Battery Chemistry
LITHIUM-ION
Contact Plating
Gold
Fault Protection
Over Voltage
Height
800um
Lead Free
Lead Free
Length
4mm
Max Operating Temperature
110°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Operating Supply Voltage
20V
Output Current
14mA
Output Voltage
30V
Package Quantity
250
Packaging
Tape and Reel
RoHS Compliant
Yes
Thickness
750um
Weight
0.000384oz
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments BQ771604DPJT Datasheet
Download the complete datasheet for Texas Instruments BQ771604DPJT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

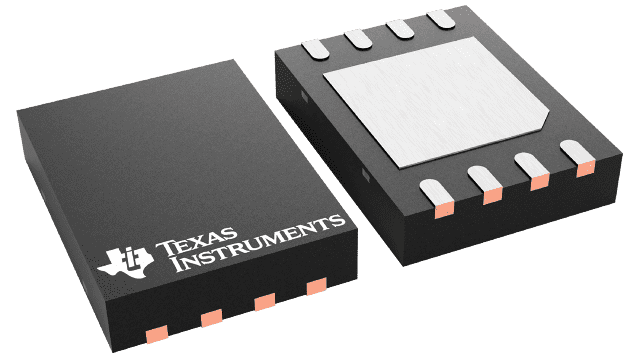

Product Images
