Quad buffer amplifier featuring a 1MHz -3dB bandwidth and 1.6V/µs slew rate. This integrated circuit offers four independent buffer circuits within an HTSSOP package, supporting surface mount installation. It operates with a wide supply voltage range of 7V to 18V and provides 100mA output current. Key specifications include a 1pA input bias current, 30mV input offset voltage, and 62dB PSRR.
PackageHTSSOP
Current7.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments BUF05704AIPWPG4 technical specifications.
General
| -3db Bandwidth | 1MHz |
| Package/Case | HTSSOP |
| Input Bias Current | 1pA |
| Input Offset Voltage (Vos) | 30mV |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Power Dissipation | 2.67W |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 7V |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Operating Supply Current | 5mA |
| Output Current | 100mA |
| Package Quantity | 90 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 62dB |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | BUF05704 |
| Slew Rate | 1.6V/µs |
| Supply Current | 7.5mA |
| Voltage Gain | 0.004dB |
| Weight | 0.002046oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments BUF05704AIPWPG4 Datasheet
Download the complete datasheet for Texas Instruments BUF05704AIPWPG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

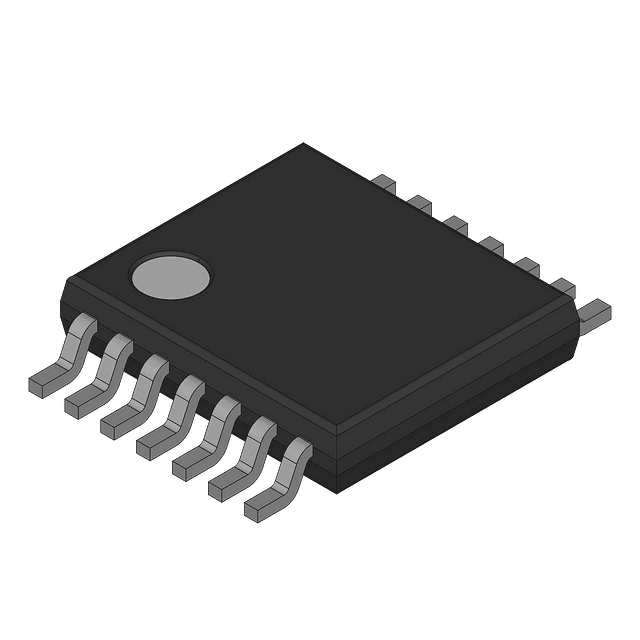

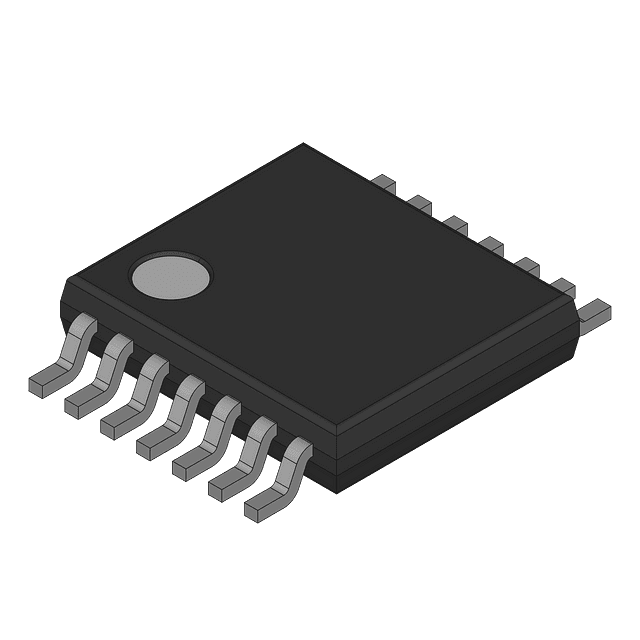

Product Images
